RM15WTPZA-12P(72)

Obsolete

Hirose Electric USA, Inc.

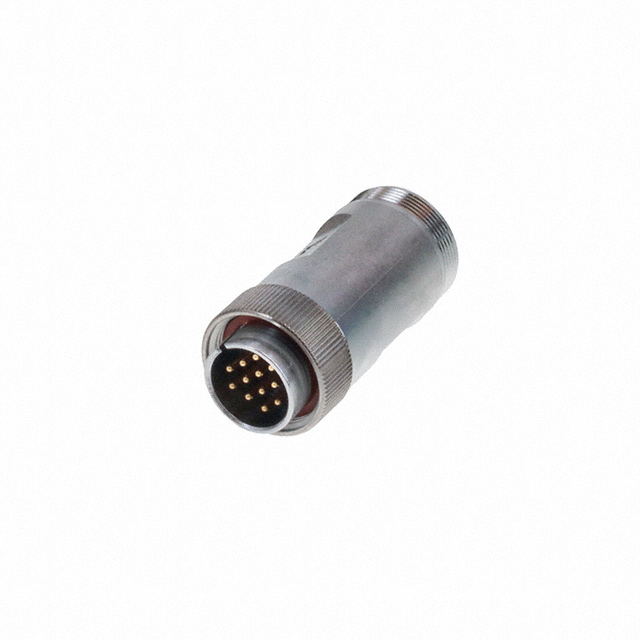

CONN PLUG MALE 12P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RM15WTPZA-12P(72)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG MALE 12P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM15WTPZA-12P(72)

Backshell Material, Plating	Chrome, Zinc Alloy
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Phosphor Bronze
Current Rating (Amps)	5 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Diallyl Phthalate (DAP)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Copper Alloy
Shell Size - Insert	15
Voltage Rating	350 VAC, 490 VDC

RM15WTPZA Series

Part	Shell Finish	Mounting Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Material	Connector Type	Features	Shell Material	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Orientation	Color	Contact Finish - Mating	Current Rating (Amps)	Primary Material	Ingress Protection	Backshell Material, Plating	Contact Finish Thickness - Mating	Number of Positions	Shielding
Hirose Electric USA, Inc. RM15WTPZA-3S(71)	Chrome	Free Hanging (In-Line)	Diallyl Phthalate (DAP)	-25 °C	85 °C	UL94 V-0	Phosphor Bronze	Female Sockets Plug	Backshell Coupling Nut	Zinc Alloy	500 VAC 700 VDC	118.1 µin	3 µm	15	Keyed	Silver	Silver	10 A	Metal	IP67/IP68 - Dust Tight Waterproof	Chrome Zinc Alloy
Hirose Electric USA, Inc. RM15WTPZA-3S(72)	Chromate	Free Hanging (In-Line)	Diallyl Phthalate (DAP)	-25 °C	85 °C	UL94 V-0	Phosphor Bronze	Female Sockets Plug	Backshell Coupling Nut	Zinc Alloy	500 VAC 700 VDC	0.203 Ám		15	Keyed	Silver	Gold	10 A	Metal	IP67/IP68 - Dust Tight Waterproof		8 Áin
Hirose Electric USA, Inc. RM15WTPZA-12S(71)	Chrome	Free Hanging (In-Line)	Diallyl Phthalate (DAP)	-25 °C	85 °C	UL94 V-0	Copper Alloy	Female Sockets Plug	Backshell Coupling Nut	Zinc Alloy	350 VAC 490 VDC	5 µm		15	Keyed	Silver	Silver	5 A	Metal	IP67/IP68 - Dust Tight Waterproof	Chrome Zinc Alloy	196.9 µin	12
Hirose Electric USA, Inc. RM15WTPZA-2P(71)	Chrome	Free Hanging (In-Line)	Diallyl Phthalate (DAP)	-25 °C	85 °C	UL94 V-0	Copper Alloy	Male Pins Plug	Backshell Coupling Nut	Zinc Alloy	600 VAC 840 VDC	2 µm		15	Keyed	Silver	Silver	10 A	Metal	IP67/IP68 - Dust Tight Waterproof	Chrome Zinc Alloy	78.7 µin	2
Hirose Electric USA, Inc. RM15WTPZA-12P(76)		Free Hanging (In-Line)		-25 °C	85 °C	UL94 V-0		Male Pins Plug	Backshell Coupling Nut	Brass Zinc Alloy	350 VAC 490 VDC			15	Keyed	Silver		5 A	Metal	IP67/IP68 - Dust Tight Waterproof			12	Unshielded
Hirose Electric USA, Inc. RM15WTPZA-10S(71)	Chrome	Free Hanging (In-Line)	Diallyl Phthalate (DAP)	-25 °C	85 °C	UL94 V-0	Copper Alloy	Female Sockets Plug	Backshell Coupling Nut	Zinc Alloy	350 VAC 490 VDC	5 µm		15	Keyed	Silver	Silver	5 A	Metal	IP67/IP68 - Dust Tight Waterproof	Chrome Zinc Alloy	196.9 µin	10
Hirose Electric USA, Inc. RM15WTPZA-12P(72)	Chrome	Free Hanging (In-Line)	Diallyl Phthalate (DAP)	-25 °C	85 °C	UL94 V-0	Phosphor Bronze	Male Pins Plug	Backshell Coupling Nut	Copper Alloy	350 VAC 490 VDC	0.203 Ám		15	Keyed	Silver	Gold	5 A	Metal	IP67/IP68 - Dust Tight Waterproof	Chrome Zinc Alloy	8 Áin	12
Hirose Electric USA, Inc. RM15WTPZA-10P(71)	Chrome	Free Hanging (In-Line)	Diallyl Phthalate (DAP)	-25 °C	85 °C	UL94 V-0	Phosphor Bronze	Male Pins Plug	Backshell Coupling Nut	Zinc Alloy	350 VAC 490 VDC	2 µm		15	Keyed	Silver	Silver	5 A	Metal	IP67/IP68 - Dust Tight Waterproof	Chrome Zinc Alloy	78.7 µin	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RM15WTPZA Series

12 Position Circular Connector Plug, Male Pins Solder Cup
