RM15WTPZA-10S(71)

Obsolete

Hirose Electric USA, Inc.

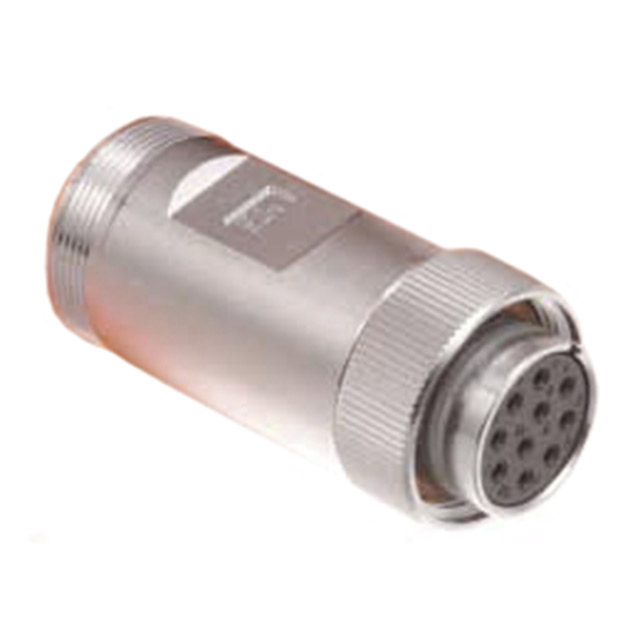

CIRCULAR CONNECTOR, 10 CONTACT(S), BRASS/ZINC ALLOY, FEMALE, SOLDER TERMINAL, PLUG, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RM15WTPZA-10S(71)

Obsolete

Hirose Electric USA, Inc.

CIRCULAR CONNECTOR, 10 CONTACT(S), BRASS/ZINC ALLOY, FEMALE, SOLDER TERMINAL, PLUG, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM15WTPZA-10S(71)

Backshell Material, Plating	Chrome, Zinc Alloy
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	196.9 µin
Contact Finish Thickness - Mating	5 µm
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Diallyl Phthalate (DAP)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Zinc Alloy
Shell Size - Insert	15
Voltage Rating	350 VAC, 490 VDC

RM15WTPZA Series

Part	Shell Finish	Mounting Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Material	Connector Type	Features	Shell Material	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Orientation	Color	Contact Finish - Mating	Current Rating (Amps)	Primary Material	Ingress Protection	Backshell Material, Plating	Contact Finish Thickness - Mating	Number of Positions	Shielding
Hirose Electric USA, Inc. RM15WTPZA-3S(71)	Chrome	Free Hanging (In-Line)	Diallyl Phthalate (DAP)	-25 °C	85 °C	UL94 V-0	Phosphor Bronze	Female Sockets Plug	Backshell Coupling Nut	Zinc Alloy	500 VAC 700 VDC	118.1 µin	3 µm	15	Keyed	Silver	Silver	10 A	Metal	IP67/IP68 - Dust Tight Waterproof	Chrome Zinc Alloy
Hirose Electric USA, Inc. RM15WTPZA-3S(72)	Chromate	Free Hanging (In-Line)	Diallyl Phthalate (DAP)	-25 °C	85 °C	UL94 V-0	Phosphor Bronze	Female Sockets Plug	Backshell Coupling Nut	Zinc Alloy	500 VAC 700 VDC	0.203 Ám		15	Keyed	Silver	Gold	10 A	Metal	IP67/IP68 - Dust Tight Waterproof		8 Áin
Hirose Electric USA, Inc. RM15WTPZA-12S(71)	Chrome	Free Hanging (In-Line)	Diallyl Phthalate (DAP)	-25 °C	85 °C	UL94 V-0	Copper Alloy	Female Sockets Plug	Backshell Coupling Nut	Zinc Alloy	350 VAC 490 VDC	5 µm		15	Keyed	Silver	Silver	5 A	Metal	IP67/IP68 - Dust Tight Waterproof	Chrome Zinc Alloy	196.9 µin	12
Hirose Electric USA, Inc. RM15WTPZA-2P(71)	Chrome	Free Hanging (In-Line)	Diallyl Phthalate (DAP)	-25 °C	85 °C	UL94 V-0	Copper Alloy	Male Pins Plug	Backshell Coupling Nut	Zinc Alloy	600 VAC 840 VDC	2 µm		15	Keyed	Silver	Silver	10 A	Metal	IP67/IP68 - Dust Tight Waterproof	Chrome Zinc Alloy	78.7 µin	2
Hirose Electric USA, Inc. RM15WTPZA-12P(76)		Free Hanging (In-Line)		-25 °C	85 °C	UL94 V-0		Male Pins Plug	Backshell Coupling Nut	Brass Zinc Alloy	350 VAC 490 VDC			15	Keyed	Silver		5 A	Metal	IP67/IP68 - Dust Tight Waterproof			12	Unshielded
Hirose Electric USA, Inc. RM15WTPZA-10S(71)	Chrome	Free Hanging (In-Line)	Diallyl Phthalate (DAP)	-25 °C	85 °C	UL94 V-0	Copper Alloy	Female Sockets Plug	Backshell Coupling Nut	Zinc Alloy	350 VAC 490 VDC	5 µm		15	Keyed	Silver	Silver	5 A	Metal	IP67/IP68 - Dust Tight Waterproof	Chrome Zinc Alloy	196.9 µin	10
Hirose Electric USA, Inc. RM15WTPZA-12P(72)	Chrome	Free Hanging (In-Line)	Diallyl Phthalate (DAP)	-25 °C	85 °C	UL94 V-0	Phosphor Bronze	Male Pins Plug	Backshell Coupling Nut	Copper Alloy	350 VAC 490 VDC	0.203 Ám		15	Keyed	Silver	Gold	5 A	Metal	IP67/IP68 - Dust Tight Waterproof	Chrome Zinc Alloy	8 Áin	12
Hirose Electric USA, Inc. RM15WTPZA-10P(71)	Chrome	Free Hanging (In-Line)	Diallyl Phthalate (DAP)	-25 °C	85 °C	UL94 V-0	Phosphor Bronze	Male Pins Plug	Backshell Coupling Nut	Zinc Alloy	350 VAC 490 VDC	2 µm		15	Keyed	Silver	Silver	5 A	Metal	IP67/IP68 - Dust Tight Waterproof	Chrome Zinc Alloy	78.7 µin	10
