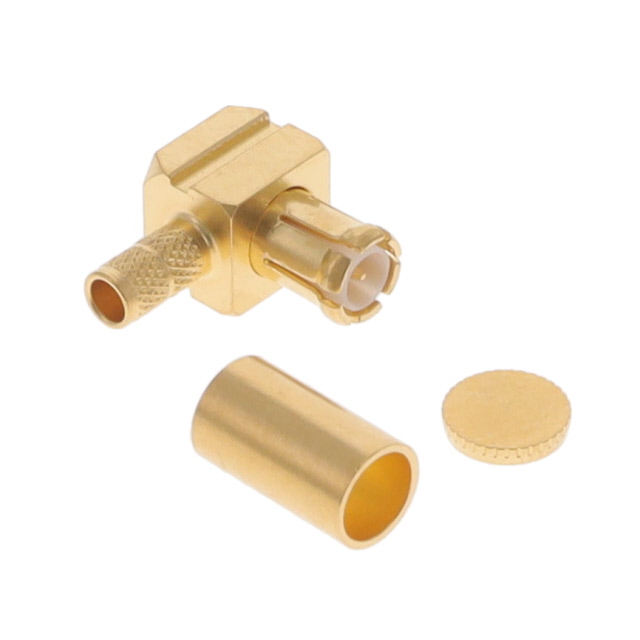

16_MCX-50-2-11/111_NH

Active

Huber+Suhner, Inc.

RF CONNECTORS / COAXIAL CONNECTORS MCX RIGHT ANGLE CABLE PLUG(M)

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	16_MCX-50-2-11/111_NH

Body Finish	Gold
Body Material	Brass
Cable Group	RG-316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	170 V

16_MCX-50 Series

Part	Cable Group	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Center Contact Plating	Fastening Type	Body Material	Connector Style	Housing Color	Dielectric Material	Contact Termination	Number of Ports	Mating Cycles	Frequency - Max [Max]	Mounting Type	Center Contact Material	Body Finish	Voltage Rating	Impedance	Cable Group
Huber+Suhner, Inc. 16_MCX-50-2-18/111_TH	188 316 RG-174	Male Pin Plug	-65 ░C	165 °C	Crimp	Gold	Snap-On	Brass	MCX	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder	1	500	6000 MHz	Free Hanging (In-Line) Right Angle	Brass	Gold	170 V	50 Ohms
Huber+Suhner, Inc. 16_MCX-50-1-11/111_NH	Semi Rigid	Male Pin Plug	-65 ░C	165 °C	Solder	Gold	Snap-On	Beryllium Copper	MCX	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder	1	500	6000 MHz	Free Hanging (In-Line) Right Angle	Brass	Gold	170 V	50 Ohms	0.047 in
Huber+Suhner, Inc. 16_MCX-50-2-14/133_NE	188 316 RG-174	Male Pin Plug	-55 °C	155 °C	Crimp	Gold	Snap-On	Brass	MCX	Silver	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder	1	500	6000 MHz	Free Hanging (In-Line) Right Angle	Brass	White Bronze	170 V	50 Ohms
Huber+Suhner, Inc. 16_MCX-50-2-102/111_NH-1	316 RG-188	Male Pin Plug	-65 ░C	165 °C	Solder	Gold	Snap-On	Beryllium Copper	MCX	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder	1	500	6000 MHz	Free Hanging (In-Line) Right Angle	Brass	Gold	170 V	50 Ohms
Huber+Suhner, Inc. 16_MCX-50-2-11/133_NE	RD-316	Male Pin Plug	-55 °C	155 °C	Crimp	Gold	Snap-On	Brass	MCX	Silver	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder	1	500	6000 MHz	Free Hanging (In-Line) Right Angle	Brass	White Bronze	170 V	50 Ohms
Huber+Suhner, Inc. 16_MCX-50-1-7/111_NH	RG-178	Male Pin Plug	-55 °C	155 °C	Crimp	Gold	Snap-On	Brass	MCX	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder	1	500	6000 MHz	Free Hanging (In-Line) Right Angle	Brass	Gold	170 V	50 Ohms	196
Huber+Suhner, Inc. 16_MCX-50-2-14/133_NH	188 316 RG-174	Male Pin Plug	-55 °C	155 °C	Crimp	Gold	Snap-On	Beryllium Copper	MCX	Silver	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder	1	500	6000 MHz	Free Hanging (In-Line) Right Angle	Brass	White Bronze	170 V	50 Ohms
Huber+Suhner, Inc. 16_MCX-50-2-11/111_NH	RG-316	Male Pin Plug	-65 ░C	165 °C	Crimp	Gold	Snap-On	Brass	MCX	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder	1	500	6000 MHz	Free Hanging (In-Line) Right Angle	Brass	Gold	170 V	50 Ohms
Huber+Suhner, Inc. 16_MCX-50-2-11/133_NH-1	RD-316	Male Pin Plug	-55 °C	155 °C	Crimp	Gold	Snap-On	Brass	MCX	Silver	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder	1	500	6000 MHz	Free Hanging (In-Line) Right Angle	Brass	White Bronze	170 V	50 Ohms
Huber+Suhner, Inc. 16_MCX-50-2-104/111_NH	RG-405	Male Pin Plug	-65 ░C	165 °C	Solder	Gold	Snap-On	Beryllium Copper	MCX	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder	1	500	6000 MHz	Free Hanging (In-Line) Right Angle	Brass	Gold	170 V	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.42
		10	$ 4.01
		25	$ 3.80
		50	$ 3.71
		100	$ 3.54
		250	$ 3.11

Description

General part information

16_MCX-50 Series

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder

Documents

Technical documentation and resources
