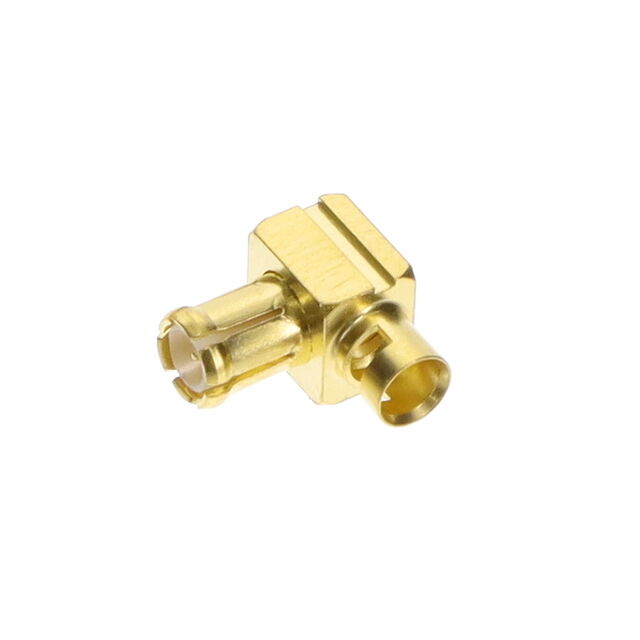

16_MCX-50-2-102/111_NH-1
ActiveHuber+Suhner, Inc.
16_MCX-50-2-102/111_NH-1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
16_MCX-50-2-102/111_NH-1
ActiveHuber+Suhner, Inc.
16_MCX-50-2-102/111_NH-1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 16_MCX-50-2-102/111_NH-1 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | 316, RG-188 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 170 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.44 | |
| 10 | $ 5.70 | |||
| 25 | $ 5.15 | |||
| 50 | $ 4.77 | |||
| 100 | $ 4.43 | |||
| 250 | $ 4.02 | |||
| 500 | $ 3.75 | |||
| 1000 | $ 3.51 | |||
| 2500 | $ 3.22 | |||
Description
General part information
16_MCX-50 Series
MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
