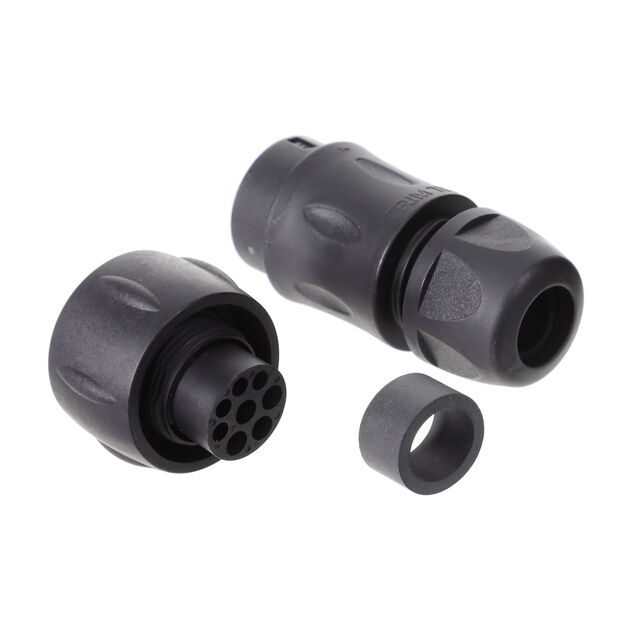

UTS6JC148P

Active

Souriau-Sunbank by Eaton

CONN PLUG HSNG MALE 8POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

UTS6JC148P

Active

Souriau-Sunbank by Eaton

CONN PLUG HSNG MALE 8POS INLINE

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTS6JC148P

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16 (4), 12 (4)
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP68, IP69K
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert	14-8
Shielding	Unshielded
Type	For Male Pins

UTS6J Series

Part	Ingress Protection	Note	Contact Size	Features	Shell Size - Insert	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Fastening Type	Orientation	Number of Positions	Shielding	Connector Type	Mounting Type	Housing Color	Material Flammability Rating	Contact Shape	Backshell Material, Plating	Contact Finish - Mating	Insert Material	Primary Material	Color	Voltage Rating	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Contact Size
Souriau-Sunbank by Eaton UTS6JC148P	IP68 IP69K	Contacts Not Included	12 (4) 16 (4)	Backshell Coupling Nut	14-8	For Male Pins	-40 °C	105 ░C	Crimp	Bayonet Lock	N	8	Unshielded	Plug Housing	Free Hanging (In-Line)	Black	UL94 V-0	Circular
Souriau-Sunbank by Eaton UTS6JC14E15S	IP68 IP69K			Backshell Coupling Nut UV Resistant			-40 °C	105 ░C		Bayonet Lock	N	15	Unshielded	Female Sockets Plug	Free Hanging (In-Line)		UL94 V-0		Nylon Polyamide (PA)	Gold	Polychloroprene	Plastic	Black	600 V	14	15	Brass	16 Áin	0.41 Ám	Energy Instrumentation Lighting Telecommunications	12 A
Souriau-Sunbank by Eaton UTS6JC142G1P	IP68 IP69K	Contacts Not Included		Backshell Coupling Nut	14-2	For Male Pins	-40 °C	105 ░C	Crimp	Bayonet Lock	N		Unshielded	Plug Housing	Free Hanging (In-Line)	Black	UL94 V-0	Circular														3	1	2	8
Souriau-Sunbank by Eaton UTS6JC104P	IP68 IP69K	Contacts Not Included		Backshell Coupling Nut	10-4	For Male Pins	-40 °C	105 ░C	Crimp	Bayonet Lock	N	4	Unshielded	Plug Housing	Free Hanging (In-Line)	Black	UL94 V-0	Circular																	16
Souriau-Sunbank by Eaton UTS6JC12E8P	IP68 IP69K			Backshell Coupling Nut UV Resistant	12-8		-40 °C	105 ░C		Bayonet Lock	N	8	Unshielded	Male Pins Plug	Free Hanging (In-Line)		UL94 V-0		Nylon Polyamide (PA)	Gold	Polychloroprene	Plastic	Black	250 VDC			Brass	16 Áin	0.41 Ám	Energy Instrumentation Lighting Telecommunications	4.5 A
Souriau-Sunbank by Eaton UTS6JC10E98SX	IP68 IP69K			Backshell Coupling Nut UV Resistant			-40 °C	105 ░C		Bayonet Lock	X	6	Unshielded	Female Sockets Plug	Free Hanging (In-Line)		UL94 V-0		Nylon Polyamide (PA)	Gold	Polychloroprene	Plastic	Black	250 VDC	10	98	Brass	16 Áin	0.41 Ám	Energy Instrumentation Lighting Telecommunications	6 A
Souriau-Sunbank by Eaton UTS6JC18-32P	IP68 IP69K	Contacts Not Included		Backshell Coupling Nut		For Male Pins	-40 °C	105 ░C	Crimp	Bayonet Lock	N		Unshielded	Plug Housing	Free Hanging (In-Line)	Black	UL94 V-0	Circular							18	32									20
Souriau-Sunbank by Eaton UTS6JC142G1S	IP68 IP69K	Contacts Not Included		Backshell Coupling Nut	14-2	For Female Sockets	-40 °C	105 ░C	Crimp	Bayonet Lock	N		Unshielded	Plug Housing	Free Hanging (In-Line)	Black	UL94 V-0	Circular														3	1	2	8
Souriau-Sunbank by Eaton UTS6JC14E5SW	IP68 IP69K			Backshell Coupling Nut UV Resistant	14-5		-40 °C	105 ░C		Bayonet Lock	W		Unshielded	Female Sockets Plug	Free Hanging (In-Line)		UL94 V-0		Nylon Polyamide (PA)	Gold	Polychloroprene	Plastic	Black	600 V			Brass	16 Áin	0.41 Ám	Energy Instrumentation Lighting Telecommunications	12 A
Souriau-Sunbank by Eaton UTS6JC10E6S	IP68 IP69K			Backshell Coupling Nut UV Resistant	10-6		-40 °C	105 ░C		Bayonet Lock	N	6	Unshielded	Female Sockets Plug	Free Hanging (In-Line)		UL94 V-0		Nylon Polyamide (PA)	Gold	Polychloroprene	Plastic	Black	250 VDC			Brass	16 Áin	0.41 Ám	Energy Instrumentation Lighting Telecommunications	6 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.97
		10	$ 16.97
		25	$ 15.91
		50	$ 15.15
		100	$ 14.43
		250	$ 13.53
		500	$ 12.88
Newark	Each	1	$ 22.60
		100	$ 19.64
		500	$ 17.70
		1000	$ 17.36
		2500	$ 17.11
		5000	$ 16.84
		10000	$ 15.94

Description

General part information

UTS6J Series

8 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
