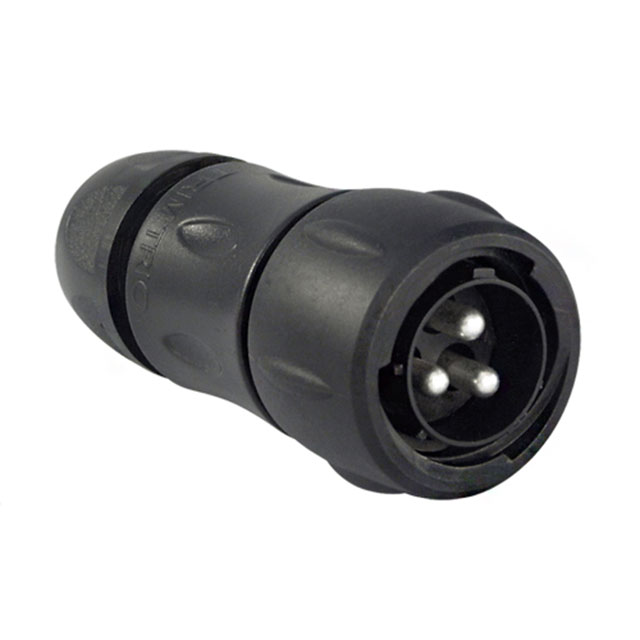

UTS6JC142G1P

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG MALE 3POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

UTS6JC142G1P

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG MALE 3POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTS6JC142G1P

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	8
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP68, IP69K
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert	14-2
Shielding	Unshielded
Type	For Male Pins

UTS6J Series

Part	Ingress Protection	Note	Contact Size	Features	Shell Size - Insert	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Fastening Type	Orientation	Number of Positions	Shielding	Connector Type	Mounting Type	Housing Color	Material Flammability Rating	Contact Shape	Backshell Material, Plating	Contact Finish - Mating	Insert Material	Primary Material	Color	Voltage Rating	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Contact Size
Souriau-Sunbank by Eaton UTS6JC148P	IP68 IP69K	Contacts Not Included	12 (4) 16 (4)	Backshell Coupling Nut	14-8	For Male Pins	-40 °C	105 ░C	Crimp	Bayonet Lock	N	8	Unshielded	Plug Housing	Free Hanging (In-Line)	Black	UL94 V-0	Circular
Souriau-Sunbank by Eaton UTS6JC14E15S	IP68 IP69K			Backshell Coupling Nut UV Resistant			-40 °C	105 ░C		Bayonet Lock	N	15	Unshielded	Female Sockets Plug	Free Hanging (In-Line)		UL94 V-0		Nylon Polyamide (PA)	Gold	Polychloroprene	Plastic	Black	600 V	14	15	Brass	16 Áin	0.41 Ám	Energy Instrumentation Lighting Telecommunications	12 A
Souriau-Sunbank by Eaton UTS6JC142G1P	IP68 IP69K	Contacts Not Included		Backshell Coupling Nut	14-2	For Male Pins	-40 °C	105 ░C	Crimp	Bayonet Lock	N		Unshielded	Plug Housing	Free Hanging (In-Line)	Black	UL94 V-0	Circular														3	1	2	8
Souriau-Sunbank by Eaton UTS6JC104P	IP68 IP69K	Contacts Not Included		Backshell Coupling Nut	10-4	For Male Pins	-40 °C	105 ░C	Crimp	Bayonet Lock	N	4	Unshielded	Plug Housing	Free Hanging (In-Line)	Black	UL94 V-0	Circular																	16
Souriau-Sunbank by Eaton UTS6JC12E8P	IP68 IP69K			Backshell Coupling Nut UV Resistant	12-8		-40 °C	105 ░C		Bayonet Lock	N	8	Unshielded	Male Pins Plug	Free Hanging (In-Line)		UL94 V-0		Nylon Polyamide (PA)	Gold	Polychloroprene	Plastic	Black	250 VDC			Brass	16 Áin	0.41 Ám	Energy Instrumentation Lighting Telecommunications	4.5 A
Souriau-Sunbank by Eaton UTS6JC10E98SX	IP68 IP69K			Backshell Coupling Nut UV Resistant			-40 °C	105 ░C		Bayonet Lock	X	6	Unshielded	Female Sockets Plug	Free Hanging (In-Line)		UL94 V-0		Nylon Polyamide (PA)	Gold	Polychloroprene	Plastic	Black	250 VDC	10	98	Brass	16 Áin	0.41 Ám	Energy Instrumentation Lighting Telecommunications	6 A
Souriau-Sunbank by Eaton UTS6JC18-32P	IP68 IP69K	Contacts Not Included		Backshell Coupling Nut		For Male Pins	-40 °C	105 ░C	Crimp	Bayonet Lock	N		Unshielded	Plug Housing	Free Hanging (In-Line)	Black	UL94 V-0	Circular							18	32									20
Souriau-Sunbank by Eaton UTS6JC142G1S	IP68 IP69K	Contacts Not Included		Backshell Coupling Nut	14-2	For Female Sockets	-40 °C	105 ░C	Crimp	Bayonet Lock	N		Unshielded	Plug Housing	Free Hanging (In-Line)	Black	UL94 V-0	Circular														3	1	2	8
Souriau-Sunbank by Eaton UTS6JC14E5SW	IP68 IP69K			Backshell Coupling Nut UV Resistant	14-5		-40 °C	105 ░C		Bayonet Lock	W		Unshielded	Female Sockets Plug	Free Hanging (In-Line)		UL94 V-0		Nylon Polyamide (PA)	Gold	Polychloroprene	Plastic	Black	600 V			Brass	16 Áin	0.41 Ám	Energy Instrumentation Lighting Telecommunications	12 A
Souriau-Sunbank by Eaton UTS6JC10E6S	IP68 IP69K			Backshell Coupling Nut UV Resistant	10-6		-40 °C	105 ░C		Bayonet Lock	N	6	Unshielded	Female Sockets Plug	Free Hanging (In-Line)		UL94 V-0		Nylon Polyamide (PA)	Gold	Polychloroprene	Plastic	Black	250 VDC			Brass	16 Áin	0.41 Ám	Energy Instrumentation Lighting Telecommunications	6 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 17.07

Description

General part information

UTS6J Series

3 (2 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
