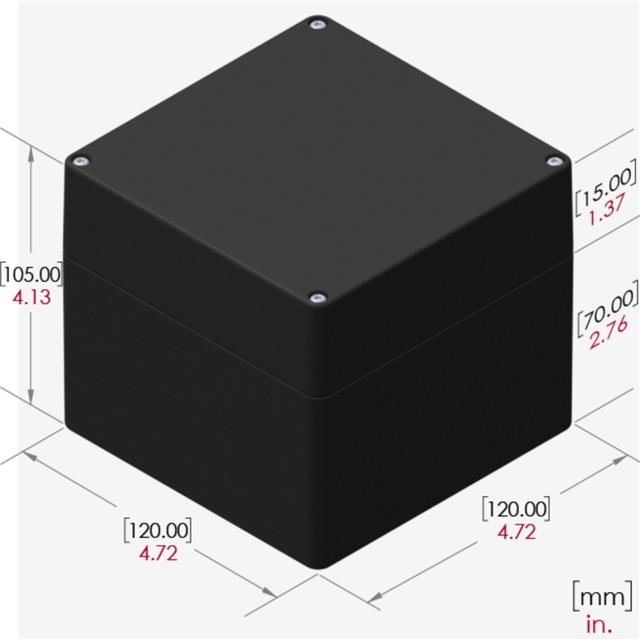

RB55P14B28B

Active

Serpac

PLASTIC ENCLOSURE, WATERTIGHT, JUNCTION BOX, POLYCARBONATE, 104.9 MM, 120 MM, 120 MM, IP67

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN

RB55P14B28B

Active

Serpac

PLASTIC ENCLOSURE, WATERTIGHT, JUNCTION BOX, POLYCARBONATE, 104.9 MM, 120 MM, 120 MM, IP67

Deep-Dive with AI

DocumentsDrawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RB55P14B28B

Area (L x W)	144 cm²
Area (L x W)	22.3 in²
Color	Black
Container Type	Box
Design	Cover Included
Height [diameter]	104.9 mm
Height [diameter]	4.13 in
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Thickness	0.12 in
Thickness	3.05 mm

RB55P14B Series

Part	Thickness	Thickness	Ratings	Container Type	Design	Material	Color	Material Flammability Rating	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Height [diameter]	Height [diameter]	Area (L x W)
Serpac RB55P14B16B	0.12 in	3.05 mm	IP67 NEMA 4	Box	Cover Included	Plastic Polycarbonate	Black	UL94 V-0	144 cm²	22.3 in²	2.95 "	74.93 mm
Serpac RB55P14B28B	0.12 in	3.05 mm	IP67 NEMA 4	Box	Cover Included	Plastic Polycarbonate	Black	UL94 V-0	144 cm²	22.3 in²			104.9 mm	4.13 in
Serpac RB55P14B10B	0.12 in	3.05 mm	IP67 NEMA 4	Box	Cover Included	Plastic Polycarbonate	Black	UL94 V-0	22.3 in˛		2.38 in	60.45 mm			144 cm˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.25
		10	$ 15.98
		100	$ 12.51

Description

General part information

RB55P14B Series

The RB55P14B28B from Serpac is a polycarbonate watertight electronic (junction) enclosure. It is made of UV stabilized polycarbonate (UL 94 V-0) and meets IP67 and NEMA 4X, 12, 13 rating.

Documents

Technical documentation and resources

Drawing EN

Datasheet
