RB55P14B16B

Active

Serpac

BOX PLASTIC BLACK

Search across all available documentation for this part.

Active

Serpac

BOX PLASTIC BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	RB55P14B16B

Area (L x W)	144 cm²
Area (L x W)	22.3 in²
Color	Black
Container Type	Box
Design	Cover Included
Height [z]	2.95 "
Height [z]	74.93 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Thickness	0.12 in
Thickness	3.05 mm

Part	Thickness	Thickness	Ratings	Container Type	Design	Material	Color	Material Flammability Rating	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Height [diameter]	Height [diameter]	Area (L x W)
Serpac RB55P14B16B	0.12 in	3.05 mm	IP67 NEMA 4	Box	Cover Included	Plastic Polycarbonate	Black	UL94 V-0	144 cm²	22.3 in²	2.95 "	74.93 mm
Serpac RB55P14B28B	0.12 in	3.05 mm	IP67 NEMA 4	Box	Cover Included	Plastic Polycarbonate	Black	UL94 V-0	144 cm²	22.3 in²			104.9 mm	4.13 in
Serpac RB55P14B10B	0.12 in	3.05 mm	IP67 NEMA 4	Box	Cover Included	Plastic Polycarbonate	Black	UL94 V-0	22.3 in˛		2.38 in	60.45 mm			144 cm˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.77

General part information

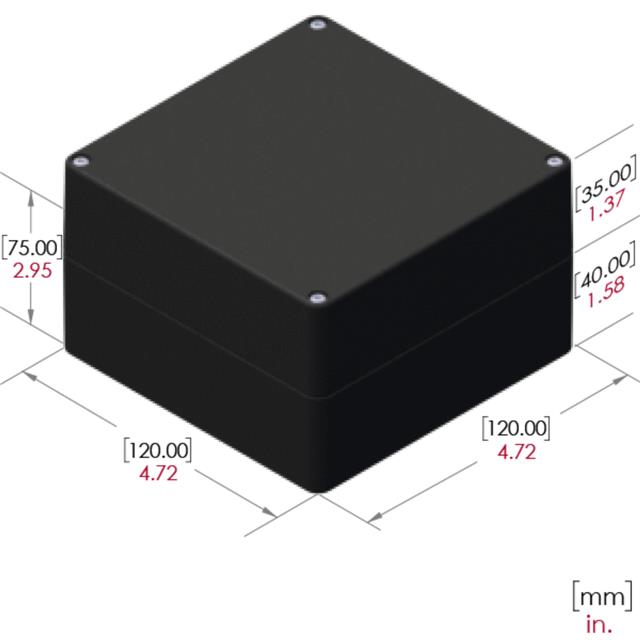

Box Plastic, Polycarbonate Black Cover Included X 2.950" (74.93mm)

Technical documentation and resources

No documents available
