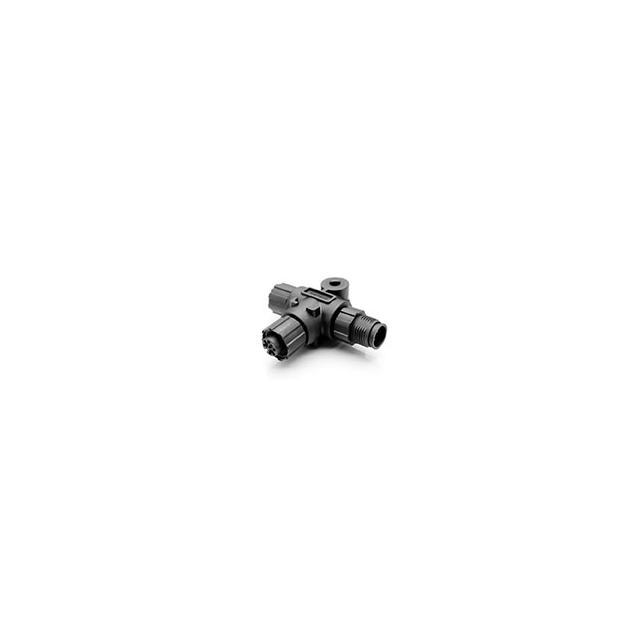

AM-N05-TEE

Active

Amphenol Sine Systems Corp

NMEA 2000 M12 MULTI-HUB TEE, 5 P

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA Series Family Datasheet +1

AM-N05-TEE

Active

Amphenol Sine Systems Corp

NMEA 2000 M12 MULTI-HUB TEE, 5 P

Deep-Dive with AI

DocumentsA Series Family Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM-N05-TEE

Connector Style	Distributor T-Shaped
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Female Sockets (1), Male Pins (1)
Current Rating (Amps)	4 A
Features	Coupling Nut
Housing Color	Black
Housing Material	Thermoplastic Polyurethane (TPU)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	5
Number of Positions (Convert To)	5
Number of Positions (Convert To)	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Orientation (Convert From)	A
Orientation (Convert To)	A
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M12
Shielding	Unshielded
Voltage Rating	60 VDC

AM-N05 Series

Part	1st Connector Number of Positions Loaded	1st Connector Gender	Color	2nd Connector Gender	Assembly Configuration	1st Connector Shell Size - Insert	Ingress Protection	2nd Connector Type	1st Connector Orientation [custom]	1st Connector Number of Positions	2nd Connector Number of Positions	Cable Type	Usage	Shielding	2nd Connector Mounting Type	2nd Connector Number of Positions Loaded	1st Connector Mounting Type	2nd Connector Shell Size - Insert	1st Connector Type	Cable Material	Length [x]	Length [x]	Shell Size - Insert (Convert To) [custom]	Features	Convert From (Adapter End)	Shell Size - Insert (Convert From)	Current Rating (Amps)	Orientation (Convert From)	Number of Positions (Convert To)	Number of Positions (Convert To)	Convert To (Adapter End)	Material Flammability Rating	Voltage Rating	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Orientation (Convert To)	Number of Positions (Convert From)	Mounting Type	Housing Color
Amphenol Sine Systems Corp AM-N05PS-M5	All	Male Pins	Gray	Female Sockets	Standard	M12	IP67	Plug	Keyed	4	4	Round	Industrial Environments	Unshielded	Free Hanging (In-Line)	All	Free Hanging (In-Line)	M12	Receptacle	Polyvinyl Chloride (PVC)
Amphenol Sine Systems Corp AM-N05P-M1	All	Male Pins	Gray		Standard	M12	IP67	Wire Leads	Keyed	4		Round	Industrial Environments	Unshielded			Free Hanging (In-Line)		Receptacle	Polyvinyl Chloride (PVC)	1 m	3.28 ft
Amphenol Sine Systems Corp AM-N05PS-M0.3	All	Male Pins	Gray	Female Sockets	Standard	M12	IP67	Plug	Keyed	4	4	Round	Industrial Environments	Unshielded	Free Hanging (In-Line)	All	Free Hanging (In-Line)	M12	Receptacle	Polyvinyl Chloride (PVC)
Amphenol Sine Systems Corp AM-N05-TEE							IP67 - Dust Tight Waterproof							Unshielded									M12	Coupling Nut	Female Sockets	M12	4 A	A	5	2	Female Sockets (1) Male Pins (1)	UL94 V-0	60 VDC	Thermoplastic Polyurethane (TPU)	90 °C	-25 °C	Distributor T-Shaped	A	5	Free Hanging (In-Line)	Black
Amphenol Sine Systems Corp AM-N05S-M1	All	Female Sockets	Gray		Standard	M12	IP67	Wire Leads	Keyed	4		Round	Industrial Environments	Unshielded			Free Hanging (In-Line)		Plug	Polyvinyl Chloride (PVC)	1 m	3.28 ft
Amphenol Sine Systems Corp AM-N05PS-M3	All	Male Pins	Gray	Female Sockets	Standard	M12	IP67	Plug	Keyed	4	4	Round	Industrial Environments	Unshielded	Free Hanging (In-Line)	All	Free Hanging (In-Line)	M12	Receptacle	Polyvinyl Chloride (PVC)	3 m	9.84 ft
Amphenol Sine Systems Corp AM-N05P-M5	All	Male Pins	Gray		Standard	M12	IP67	Wire Leads	Keyed	4		Round	Industrial Environments	Unshielded			Free Hanging (In-Line)		Receptacle	Polyvinyl Chloride (PVC)
Amphenol Sine Systems Corp AM-N05P-M0.3	All	Male Pins	Gray		Standard	M12	IP67	Wire Leads	Keyed	4		Round	Industrial Environments	Unshielded			Free Hanging (In-Line)		Receptacle	Polyvinyl Chloride (PVC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.77
		10	$ 32.20
		25	$ 30.81
		50	$ 29.82
		100	$ 28.82
		250	$ 27.23

Description

General part information

AM-N05 Series

Circular Connector Distributor T-Shaped 5/5 (2) Female Sockets/Female Sockets (1), Male Pins (1) Free Hanging (In-Line)

Documents

Technical documentation and resources

A Series Family

Datasheet

HydroNet

Datasheet
