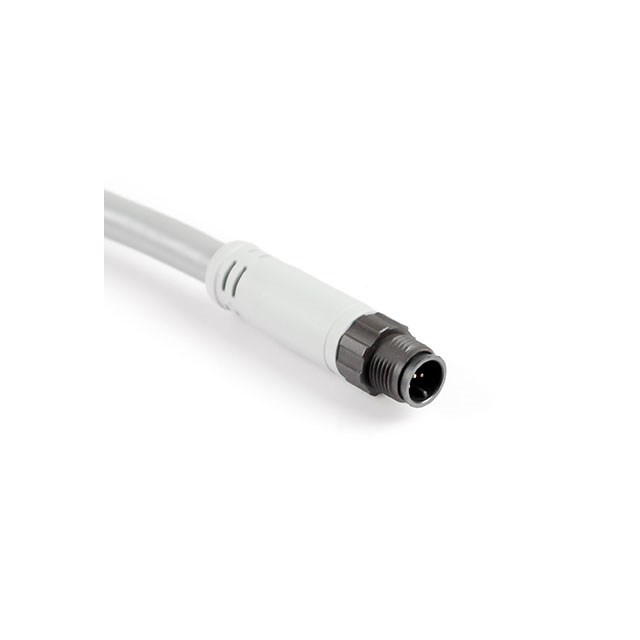

AM-N05P-M0.3

Active

Amphenol Sine Systems Corp

CIRC CBL 4POS RCPT TO WIRE 0.98'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HydroNet +1

AM-N05P-M0.3

Active

Amphenol Sine Systems Corp

CIRC CBL 4POS RCPT TO WIRE 0.98'

Deep-Dive with AI

DocumentsDatasheet HydroNet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM-N05P-M0.3

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Gray
Ingress Protection	IP67
Shielding	Unshielded
Usage	Industrial Environments

AM-N05 Series

Part	1st Connector Number of Positions Loaded	1st Connector Gender	Color	2nd Connector Gender	Assembly Configuration	1st Connector Shell Size - Insert	Ingress Protection	2nd Connector Type	1st Connector Orientation [custom]	1st Connector Number of Positions	2nd Connector Number of Positions	Cable Type	Usage	Shielding	2nd Connector Mounting Type	2nd Connector Number of Positions Loaded	1st Connector Mounting Type	2nd Connector Shell Size - Insert	1st Connector Type	Cable Material	Length [x]	Length [x]	Shell Size - Insert (Convert To) [custom]	Features	Convert From (Adapter End)	Shell Size - Insert (Convert From)	Current Rating (Amps)	Orientation (Convert From)	Number of Positions (Convert To)	Number of Positions (Convert To)	Convert To (Adapter End)	Material Flammability Rating	Voltage Rating	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Orientation (Convert To)	Number of Positions (Convert From)	Mounting Type	Housing Color
Amphenol Sine Systems Corp AM-N05PS-M5	All	Male Pins	Gray	Female Sockets	Standard	M12	IP67	Plug	Keyed	4	4	Round	Industrial Environments	Unshielded	Free Hanging (In-Line)	All	Free Hanging (In-Line)	M12	Receptacle	Polyvinyl Chloride (PVC)
Amphenol Sine Systems Corp AM-N05P-M1	All	Male Pins	Gray		Standard	M12	IP67	Wire Leads	Keyed	4		Round	Industrial Environments	Unshielded			Free Hanging (In-Line)		Receptacle	Polyvinyl Chloride (PVC)	1 m	3.28 ft
Amphenol Sine Systems Corp AM-N05PS-M0.3	All	Male Pins	Gray	Female Sockets	Standard	M12	IP67	Plug	Keyed	4	4	Round	Industrial Environments	Unshielded	Free Hanging (In-Line)	All	Free Hanging (In-Line)	M12	Receptacle	Polyvinyl Chloride (PVC)
Amphenol Sine Systems Corp AM-N05-TEE							IP67 - Dust Tight Waterproof							Unshielded									M12	Coupling Nut	Female Sockets	M12	4 A	A	5	2	Female Sockets (1) Male Pins (1)	UL94 V-0	60 VDC	Thermoplastic Polyurethane (TPU)	90 °C	-25 °C	Distributor T-Shaped	A	5	Free Hanging (In-Line)	Black
Amphenol Sine Systems Corp AM-N05S-M1	All	Female Sockets	Gray		Standard	M12	IP67	Wire Leads	Keyed	4		Round	Industrial Environments	Unshielded			Free Hanging (In-Line)		Plug	Polyvinyl Chloride (PVC)	1 m	3.28 ft
Amphenol Sine Systems Corp AM-N05PS-M3	All	Male Pins	Gray	Female Sockets	Standard	M12	IP67	Plug	Keyed	4	4	Round	Industrial Environments	Unshielded	Free Hanging (In-Line)	All	Free Hanging (In-Line)	M12	Receptacle	Polyvinyl Chloride (PVC)	3 m	9.84 ft
Amphenol Sine Systems Corp AM-N05P-M5	All	Male Pins	Gray		Standard	M12	IP67	Wire Leads	Keyed	4		Round	Industrial Environments	Unshielded			Free Hanging (In-Line)		Receptacle	Polyvinyl Chloride (PVC)
Amphenol Sine Systems Corp AM-N05P-M0.3	All	Male Pins	Gray		Standard	M12	IP67	Wire Leads	Keyed	4		Round	Industrial Environments	Unshielded			Free Hanging (In-Line)		Receptacle	Polyvinyl Chloride (PVC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 44.92

Description

General part information

AM-N05 Series

Circular Cable Assembly Unshielded 0.98' (300.00mm)

Documents

Technical documentation and resources

Datasheet

HydroNet

Datasheet

A Series Family

Datasheet
