TFR24PA10
ActiveITT Cannon, LLC

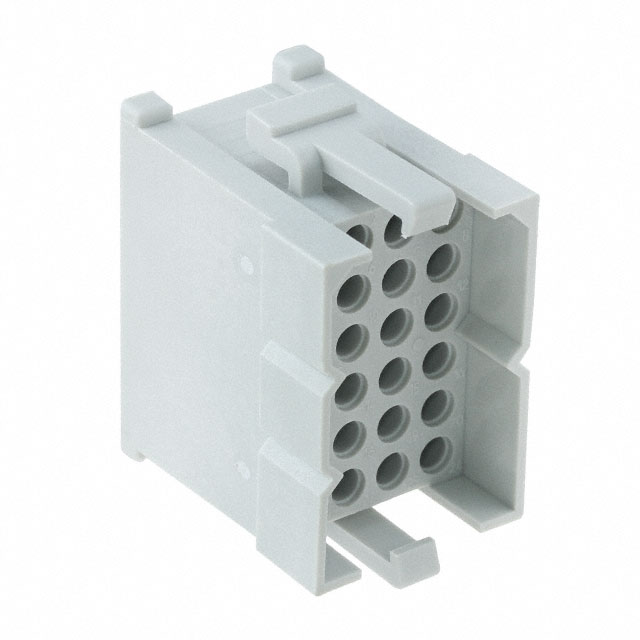

CONNECTOR HOUSING, TRIDENT TFR SERIES, PLUG, 24 POSITIONS
Deep-Dive with AI
Search across all available documentation for this part.
TFR24PA10
ActiveITT Cannon, LLC
CONNECTOR HOUSING, TRIDENT TFR SERIES, PLUG, 24 POSITIONS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TFR24PA10 |
|---|---|
| Color | Gray |
| Connector Type | Plug |
| Contact Termination | Crimp and Solder |
| Contact Type | Male or Female |
| Fastening Type | Latch Lock |
| Features | Flame Retardant |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 24 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Row Spacing | 5.08 mm |
| Row Spacing | 0.2 in |
TFR24 Series
| Part | Features | Accessory Type | For Use With/Related Products | Number of Positions | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Connector Type | Insulation Material | Fastening Type | Contact Termination | Color | Note | Contact Type | Row Spacing | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Flame Retardant | Hood and Strain Relief | Trident Rectangular Plugs | 24 | ||||||||||||||
ITT Cannon, LLC | Flame Retardant | 24 | Panel Mount Snap-In | 105 ░C | -55 °C | 0.2 in | 5.08 mm | Receptacle | Nylon Polyamide (PA) | Latch Holder | Crimp and Solder | Gray | Contacts Not Included | Male or Female | 5.08 mm | 0.2 in | ||
ITT Cannon, LLC | Flame Retardant | 24 | Free Hanging (In-Line) | 105 ░C | -55 °C | 0.2 in | 5.08 mm | Plug | Nylon Polyamide (PA) | Latch Lock | Crimp and Solder | Gray | Contacts Not Included | Male or Female | 5.08 mm | 0.2 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TFR24 Series
24 Rectangular Connectors - Housings Plug Gray 0.200" (5.08mm)
