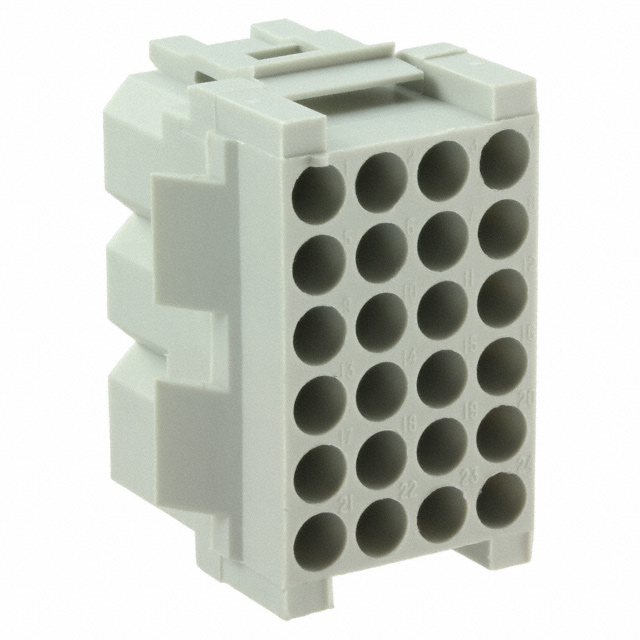

TFR24RA10

Active

ITT Cannon, LLC

CONNECTOR HOUSING, TRIDENT TFR SERIES, RECEPTACLE, 24 POSITIONS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONNECTOR HOUSING, TRIDENT TFR SERIES, RECEPTACLE, 24 POSITIONS

Technical Specifications

Parameters and characteristics for this part

Part	Features	Accessory Type	For Use With/Related Products	Number of Positions	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Connector Type	Insulation Material	Fastening Type	Contact Termination	Color	Note	Contact Type	Row Spacing	Row Spacing
ITT Cannon, LLC TFR24AH10	Flame Retardant	Hood and Strain Relief	Trident Rectangular Plugs	24
ITT Cannon, LLC TFR24RA10	Flame Retardant			24	Panel Mount Snap-In	105 ░C	-55 °C	0.2 in	5.08 mm	Receptacle	Nylon Polyamide (PA)	Latch Holder	Crimp and Solder	Gray	Contacts Not Included	Male or Female	5.08 mm	0.2 in
ITT Cannon, LLC TFR24PA10	Flame Retardant			24	Free Hanging (In-Line)	105 ░C	-55 °C	0.2 in	5.08 mm	Plug	Nylon Polyamide (PA)	Latch Lock	Crimp and Solder	Gray	Contacts Not Included	Male or Female	5.08 mm	0.2 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.20
Newark	Each	100	$ 6.90
		250	$ 6.76

General part information

24 Rectangular Connectors - Housings Receptacle Gray 0.200" (5.08mm)
