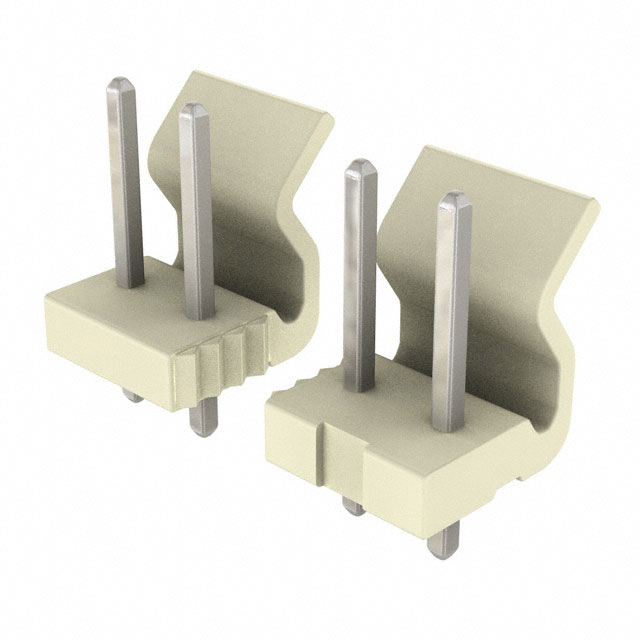

0010321081

Obsolete

Molex

CONN HEADER VERT 8POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

0010321081

Obsolete

Molex

CONN HEADER VERT 8POS 5.08MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0010321081

Applications	Industrial, Automotive, Medical, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	10.65 mm
Contact Length - Mating	0.419 in
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	12.9 mm
Insulation Height	0.508 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	17.45 mm
Overall Contact Length	0.687 in
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

001032 Series

Part	Connector Type	Fastening Type	Overall Contact Length	Overall Contact Length	Termination	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Style	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Finish - Post	Contact Shape	Insulation Material	Insulation Color	Applications	Contact Type	Material Flammability Rating	Number of Positions	Contact Length - Post	Contact Length - Post
Molex 0010321091	Header	Friction Lock	17.45 mm	0.687 in	Solder	All	10.65 mm	0.419 in	5.08 mm	0.2 in	Through Hole	Board to Cable/Wire	Brass	5.08 µm	200 µin	1	Shrouded - 1 Wall	200 µin	5.08 µm	12.9 mm	0.508 in	Tin	Square	Polyamide (PA66) Nylon 6/6	Natural	Automotive General Purpose Industrial Medical Telecommunications	Male Pin	UL94 V-2	9	3.6 mm	0.142 in
Molex 0010321021	Header	Friction Lock	17.45 mm	0.687 in	Solder	All	10.65 mm	0.419 in	5.08 mm	0.2 in	Through Hole	Board to Cable/Wire	Brass	5.08 µm	200 µin	1	Shrouded - 1 Wall	200 µin	5.08 µm	12.9 mm	0.508 in	Tin	Square	Polyamide (PA66) Nylon 6/6	Natural	Automotive General Purpose Industrial Medical Telecommunications	Male Pin	UL94 V-2	2	3.6 mm	0.142 in
Molex 0010321051	Header	Friction Lock	17.45 mm	0.687 in	Solder	All	10.65 mm	0.419 in	5.08 mm	0.2 in	Through Hole	Board to Cable/Wire	Brass	5.08 µm	200 µin	1	Shrouded - 1 Wall	200 µin	5.08 µm	12.9 mm	0.508 in	Tin	Square	Polyamide (PA66) Nylon 6/6	Natural	Automotive General Purpose Industrial Medical Telecommunications	Male Pin	UL94 V-2		3.6 mm	0.142 in
Molex 0010321081	Header	Friction Lock	17.45 mm	0.687 in	Solder	All	10.65 mm	0.419 in	5.08 mm	0.2 in	Through Hole	Board to Cable/Wire	Brass	5.08 µm	200 µin	1	Shrouded - 1 Wall	200 µin	5.08 µm	12.9 mm	0.508 in	Tin	Square	Polyamide (PA66) Nylon 6/6	Natural	Automotive General Purpose Industrial Medical Telecommunications	Male Pin	UL94 V-2	8	3.6 mm	0.142 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

001032 Series

Connector Header Through Hole 8 position 0.200" (5.08mm)
