0010321021
ActiveMolex

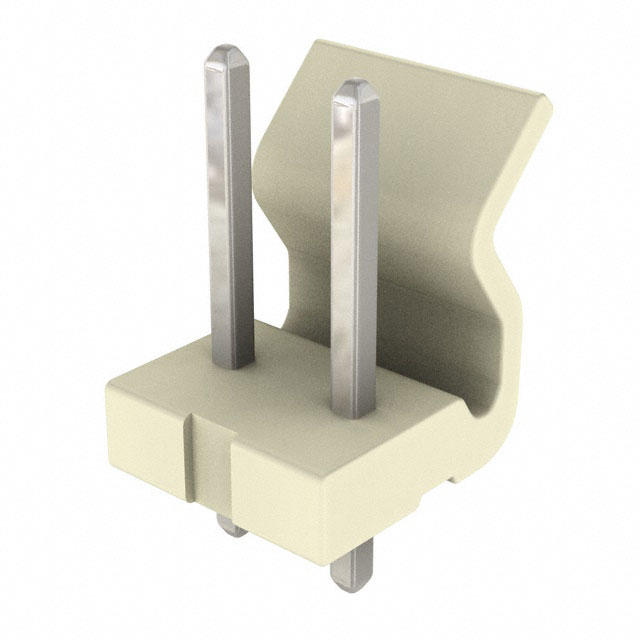

CONN HEADER VERT 2POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
0010321021
ActiveMolex
CONN HEADER VERT 2POS 5.08MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0010321021 |
|---|---|
| Applications | Industrial, Automotive, Medical, General Purpose, Telecommunications |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 5.08 µm |
| Contact Finish Thickness - Mating | 200 µin |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Length - Mating | 10.65 mm |
| Contact Length - Mating | 0.419 in |
| Contact Length - Post | 3.6 mm |
| Contact Length - Post | 0.142 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Insulation Color | Natural |
| Insulation Height | 12.9 mm |
| Insulation Height | 0.508 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Overall Contact Length | 17.45 mm |
| Overall Contact Length | 0.687 in |
| Pitch - Mating | 5.08 mm |
| Pitch - Mating | 0.2 in |
| Shrouding | Shrouded - 1 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
001032 Series
| Part | Connector Type | Fastening Type | Overall Contact Length | Overall Contact Length | Termination | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Pitch - Mating | Pitch - Mating | Mounting Type | Style | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Shrouding | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Contact Finish - Post | Contact Shape | Insulation Material | Insulation Color | Applications | Contact Type | Material Flammability Rating | Number of Positions | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Header | Friction Lock | 17.45 mm | 0.687 in | Solder | All | 10.65 mm | 0.419 in | 5.08 mm | 0.2 in | Through Hole | Board to Cable/Wire | Brass | 5.08 µm | 200 µin | 1 | Shrouded - 1 Wall | 200 µin | 5.08 µm | 12.9 mm | 0.508 in | Tin | Square | Polyamide (PA66) Nylon 6/6 | Natural | Automotive General Purpose Industrial Medical Telecommunications | Male Pin | UL94 V-2 | 9 | 3.6 mm | 0.142 in |
Molex | Header | Friction Lock | 17.45 mm | 0.687 in | Solder | All | 10.65 mm | 0.419 in | 5.08 mm | 0.2 in | Through Hole | Board to Cable/Wire | Brass | 5.08 µm | 200 µin | 1 | Shrouded - 1 Wall | 200 µin | 5.08 µm | 12.9 mm | 0.508 in | Tin | Square | Polyamide (PA66) Nylon 6/6 | Natural | Automotive General Purpose Industrial Medical Telecommunications | Male Pin | UL94 V-2 | 2 | 3.6 mm | 0.142 in |
Molex | Header | Friction Lock | 17.45 mm | 0.687 in | Solder | All | 10.65 mm | 0.419 in | 5.08 mm | 0.2 in | Through Hole | Board to Cable/Wire | Brass | 5.08 µm | 200 µin | 1 | Shrouded - 1 Wall | 200 µin | 5.08 µm | 12.9 mm | 0.508 in | Tin | Square | Polyamide (PA66) Nylon 6/6 | Natural | Automotive General Purpose Industrial Medical Telecommunications | Male Pin | UL94 V-2 | 3.6 mm | 0.142 in | |
Molex | Header | Friction Lock | 17.45 mm | 0.687 in | Solder | All | 10.65 mm | 0.419 in | 5.08 mm | 0.2 in | Through Hole | Board to Cable/Wire | Brass | 5.08 µm | 200 µin | 1 | Shrouded - 1 Wall | 200 µin | 5.08 µm | 12.9 mm | 0.508 in | Tin | Square | Polyamide (PA66) Nylon 6/6 | Natural | Automotive General Purpose Industrial Medical Telecommunications | Male Pin | UL94 V-2 | 8 | 3.6 mm | 0.142 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.46 | |
| 10 | $ 0.39 | |||
| 100 | $ 0.30 | |||
| 1000 | $ 0.25 | |||
Description
General part information
001032 Series
Connector Header Through Hole 2 position 0.200" (5.08mm)
