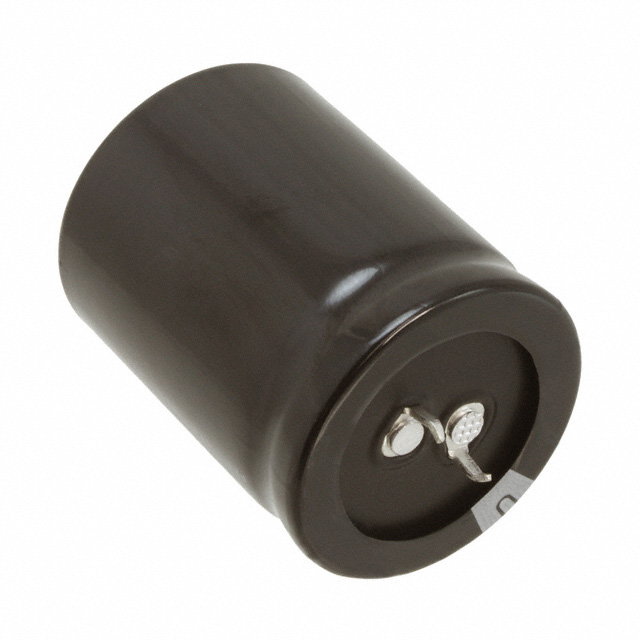

LGG2E182MELC45

Active

NICHICON

CAPACITOR: ELECTROLYTIC; SNAP-IN; 1800UF; 250VDC; Ø35X45MM; ±20%

Search across all available documentation for this part.

Active

NICHICON

CAPACITOR: ELECTROLYTIC; SNAP-IN; 1800UF; 250VDC; Ø35X45MM; ±20%

Technical Specifications

Parameters and characteristics for this part

Specification	LGG2E182MELC45

Applications	General Purpose
Capacitance	1800 µF
Height - Seated (Max) [Max] [z]	1.85 in
Height - Seated (Max) [Max] [z]	47 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	3.75 A
Ripple Current @ Low Frequency	2.5 A
Size / Dimension [diameter]	1.378 in
Size / Dimension [diameter]	35 mm
Tolerance	20 %
Voltage - Rated	250 V

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Ripple Current @ Low Frequency	Mounting Type	Polarization	Voltage - Rated	Tolerance	Package / Case	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
NICHICON LGG2C182MELB40	42 mm	1.654 in	1800 µF	0.394 in	10 mm	4.05 A	30 mm	1.181 inches	-40 °C	105 ░C	2000 Hrs	2.7 A	Through Hole	Polar	160 V	20 %	Radial Can - Snap-In	General Purpose
NICHICON LGG2E182MELC45			1800 µF	0.394 in	10 mm	3.75 A	35 mm	1.378 in	-40 °C	105 ░C	2000 Hrs	2.5 A	Through Hole	Polar	250 V	20 %	Radial Can - Snap-In	General Purpose	1.85 in	47 mm
NICHICON LGG2C122MELA40	42 mm	1.654 in	1.2 mF	0.394 in	10 mm	3.45 A	25 mm	0.984 "	-40 °C	105 ░C	2000 Hrs	2.3 A	Through Hole	Polar	160 V	20 %	Radial Can - Snap-In	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 7.55
Newark	Each	100	$ 7.92
		250	$ 7.55
		500	$ 7.01
TME	N/A	50	$ 9.67
		100	$ 9.19

General part information

1800 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
