LGG2C182MELB40

Active

NICHICON

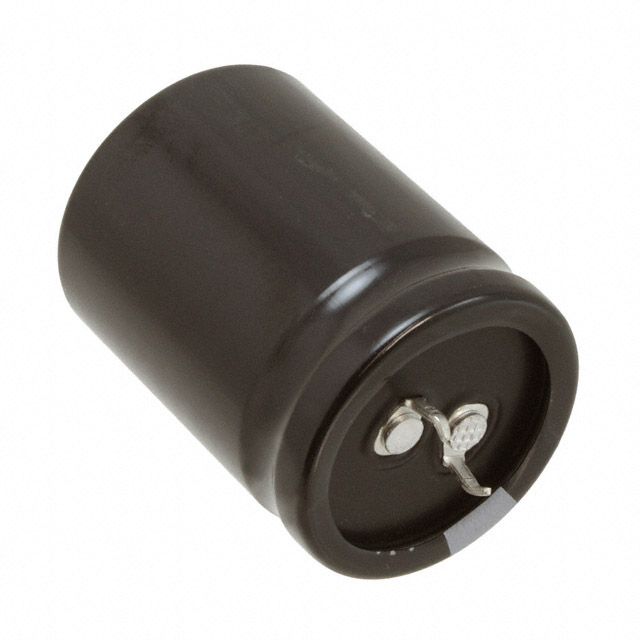

CAPACITOR: ELECTROLYTIC; SNAP-IN; 1800UF; 160VDC; Ø30X40MM; ±20%

Search across all available documentation for this part.

Active

NICHICON

CAPACITOR: ELECTROLYTIC; SNAP-IN; 1800UF; 160VDC; Ø30X40MM; ±20%

Technical Specifications

Parameters and characteristics for this part

Specification	LGG2C182MELB40

Applications	General Purpose
Capacitance	1800 µF
Height - Seated (Max) [Max]	42 mm
Height - Seated (Max) [Max]	1.654 in
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	4.05 A
Ripple Current @ Low Frequency	2.7 A
Size / Dimension [diameter]	30 mm
Size / Dimension [diameter]	1.181 inches
Tolerance	20 %
Voltage - Rated	160 V

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Ripple Current @ Low Frequency	Mounting Type	Polarization	Voltage - Rated	Tolerance	Package / Case	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
NICHICON LGG2C182MELB40	42 mm	1.654 in	1800 µF	0.394 in	10 mm	4.05 A	30 mm	1.181 inches	-40 °C	105 ░C	2000 Hrs	2.7 A	Through Hole	Polar	160 V	20 %	Radial Can - Snap-In	General Purpose
NICHICON LGG2E182MELC45			1800 µF	0.394 in	10 mm	3.75 A	35 mm	1.378 in	-40 °C	105 ░C	2000 Hrs	2.5 A	Through Hole	Polar	250 V	20 %	Radial Can - Snap-In	General Purpose	1.85 in	47 mm
NICHICON LGG2C122MELA40	42 mm	1.654 in	1.2 mF	0.394 in	10 mm	3.45 A	25 mm	0.984 "	-40 °C	105 ░C	2000 Hrs	2.3 A	Through Hole	Polar	160 V	20 %	Radial Can - Snap-In	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 4.46
Newark	Each	100	$ 4.30
		250	$ 4.10
		500	$ 3.81
TME	N/A	50	$ 5.98
		200	$ 5.26

General part information

1800 µF 160 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
