0395214012

Active

Molex

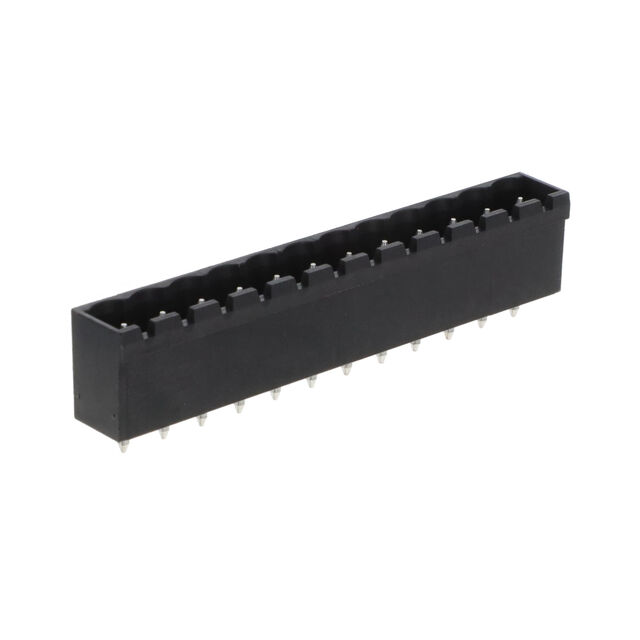

TERM BLOCK HDR 12POS VERT 5MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents39500-001 Prod Spec Datasheet

0395214012

Active

Molex

TERM BLOCK HDR 12POS VERT 5MM

Deep-Dive with AI

Documents39500-001 Prod Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395214012

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.3 mm
Contact Tail Length	0.13 in
Header Orientation	Vertical
Insulation Height	11.94 mm
Insulation Height	0.47 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	12
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	12
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

039521 Series

Part	Pitch [x]	Pitch [x]	Type	Voltage - UL	Termination Style	Mounting Type	Positions Per Level	Material Flammability Rating	Number of Positions	Number of Levels	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Mating Finish	Color	Contact Tail Length	Contact Tail Length	Header Orientation	Insulation Height	Insulation Height
Molex 0395214012	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	300 V	Solder	Through Hole	12	UL94 V-0	12	1	140 °C	-40 °C	Brass	Tin	Black	3.3 mm	0.13 in	Vertical	11.94 mm	0.47 in
Molex 0395214003	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	300 V	Solder	Through Hole	3	UL94 V-0		1	140 °C	-40 °C	Brass	Tin	Black	3.3 mm	0.13 in	Vertical	11.94 mm	0.47 in
Molex 0395211007	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	300 V	Solder	Through Hole	7	UL94 V-0	7	1	105 ░C	-40 °C	Brass	Tin	Black	3.3 mm	0.13 in	Vertical	11.94 mm	0.47 in
Molex 0395211002	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	300 V	Solder	Through Hole	2	UL94 V-0	2	1	105 ░C	-40 °C	Brass	Tin	Black	3.3 mm	0.13 in	Vertical	11.94 mm	0.47 in
Molex 0395219017	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	300 V	Solder	Through Hole	17	UL94 V-0		1	140 °C	-40 °C	Brass	Tin	Green	3.3 mm	0.13 in	Vertical	11.94 mm	0.47 in
Molex 0395216013	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	300 V	Solder	Through Hole	13	UL94 V-0	13	1	105 ░C	-40 °C	Brass	Tin	Green	3.3 mm	0.13 in	Vertical	11.94 mm	0.47 in
Molex 0395216011	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	300 V	Solder	Through Hole	11	UL94 V-0	11	1	105 ░C	-40 °C	Brass	Tin	Green	3.3 mm	0.13 in	Vertical	11.94 mm	0.47 in
Molex 0395215018	5 mm	0.197 in	Header Male Pins Shrouded (2 Side)	300 V	Solder	Through Hole	18	UL94 V-0	18	1	105 ░C	-40 °C	Brass	Tin	Green	3.81 mm	0.15 in	Vertical	11.94 mm	0.47 in
Molex 0395216022	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	300 V	Solder	Through Hole	22	UL94 V-0	22 positions	1	105 ░C	-40 °C	Brass	Tin	Green	3.3 mm	0.13 in	Vertical	11.94 mm	0.47 in
Molex 0395216014	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	300 V	Solder	Through Hole	14	UL94 V-0	14	1	105 ░C	-40 °C	Brass	Tin	Green	3.3 mm	0.13 in	Vertical	11.94 mm	0.47 in
