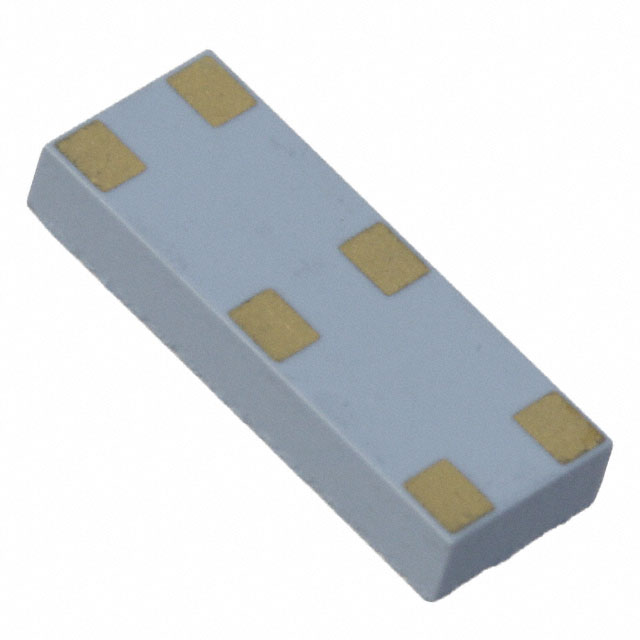

M830510-10K
Kyocera AVX
RF ANT 2.4GHZ/5.4GHZ CHIP SLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M830510-10K
Kyocera AVX
RF ANT 2.4GHZ/5.4GHZ CHIP SLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M830510-10K |
|---|---|
| Antenna Type | Chip |
| Applications | WLAN, Bluetooth, Wi-Fi, Zigbee™ |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 2.5 GHz, 5.8 GHz |
| Frequency Range [Min] | 4.9 GHz, 2.4 GHz |
| Gain | 3.2 dBi, 1.1 dBi |
| Height (Max) | 1.33 mm |
| Height (Max) [Max] [z] | 0.052 in |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | Solder |
| VSWR [Max] | 3 |
| VSWR [Min] | 2.6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 100000 | $ 0.81 | |
Description
General part information
M830510 Series
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Chip Solder Surface Mount
