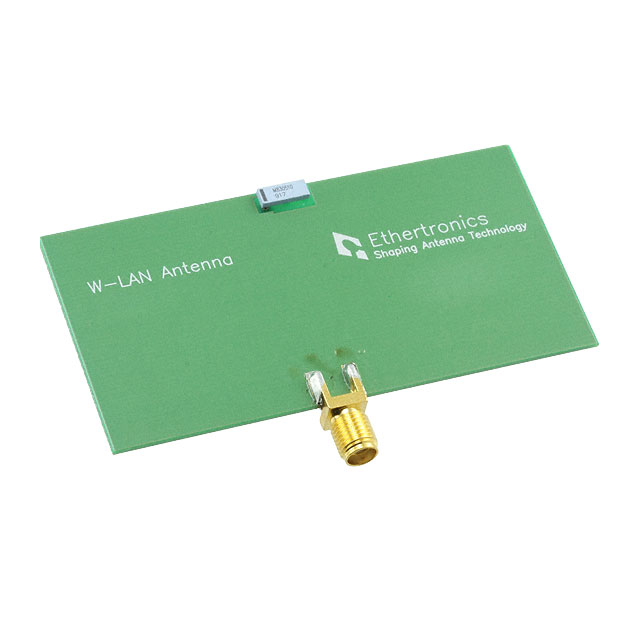

M830510-01

Kyocera AVX

EVAL BOARD FOR M830510

Search across all available documentation for this part.

Kyocera AVX

EVAL BOARD FOR M830510

Technical Specifications

Parameters and characteristics for this part

Specification	M830510-01

For Use With/Related Products	M830510
Frequency [Max]	5.8 GHz, 2.5 GHz
Frequency [Min]	4.9 GHz, 2.4 GHz
Supplied Contents	Board(s)
Type	Antenna

Part	Frequency [Min]	Frequency [Max]	Supplied Contents	Type	For Use With/Related Products	Termination	Gain	VSWR [Max]	VSWR [Min]	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Applications	RF Family/Standard	Number of Bands	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Height (Max)	Height (Max) [Max] [z]
Kyocera AVX M830510-01	2.4 GHz 4.9 GHz	2.5 GHz 5.8 GHz	Board(s)	Antenna	M830510
Kyocera AVX M830510-10K						Solder	1.1 dBi 3.2 dBi	3	2.6	Surface Mount	2.5 GHz 5.8 GHz	2.4 GHz 4.9 GHz	Chip	Bluetooth Wi-Fi WLAN Zigbee™	802.15.4 Bluetooth WiFi	2	4 GHz	2 GHz	3 GHz	1.33 mm	0.052 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 13.70

General part information

- M830510 Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz Evaluation Board
