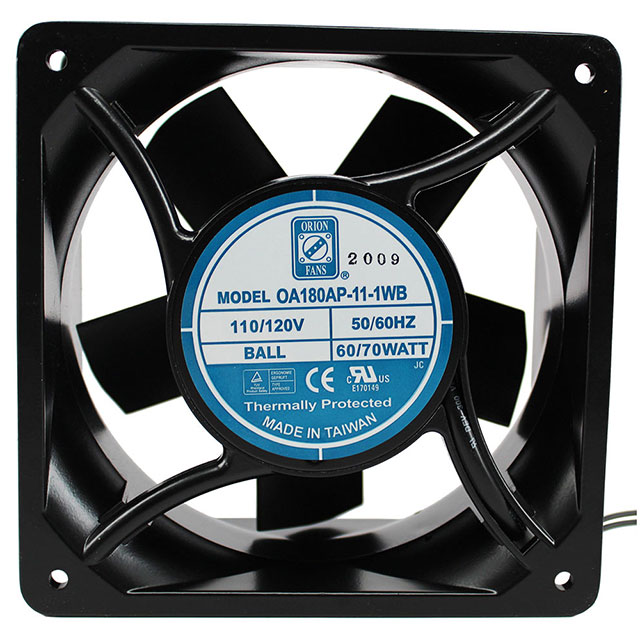

OA180AP-11-1WB

Active

Orion Fans

AC FAN AXIAL BALL BEARING 115V 100V TO 120V 361CFM/409CFM 62DB 180 X 180 X 89MM HIGH SPEED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMiscellaneous EN Technical Data Sheet EN

OA180AP-11-1WB

Active

Orion Fans

AC FAN AXIAL BALL BEARING 115V 100V TO 120V 361CFM/409CFM 62DB 180 X 180 X 89MM HIGH SPEED

Deep-Dive with AI

DocumentsMiscellaneous EN Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA180AP-11-1WB

Air Flow	11.45 mł/min
Air Flow	409 CFM
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	62 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	70 W
RPM	3175 RPM
Size / Dimension	Square
Size / Dimension [x]	180 mm
Size / Dimension [y]	180 mm
Static Pressure	209.2 Pa
Static Pressure	0.84 in H2O
Termination	2 Wire Leads
Voltage - Rated	115 VAC
Voltage Range [Max]	120 VAC
Voltage Range [Min]	100 VAC
Weight	4 lbs
Weight	1.8 kg
Width [y]	89 mm

OA180AP Series

Part	RPM	Air Flow	Air Flow	Features	Static Pressure	Static Pressure	Weight	Weight	Lifetime @ Temp.	Power (Watts)	Fan Type	Approval Agency	Ingress Protection	Material - Blade	Bearing Type	Width [y]	Material - Frame	Termination	Voltage - Rated	Noise	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Width	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]
Orion Fans OA180AP-22-1TB1868	3250 RPM	380 CFM	10.64 m³/min	Thermal Overload Protector (TOP)	189.3 Pa	0.76 in H2O	1.9 kg	4.1 lbs	50000 Hrs	80 W	Tubeaxial	CE cURus TUV UR	IP68 - Dust Tight Waterproof	Steel	Ball	89 mm	Aluminum	2 Terminals	230 VAC	63 dB	176 mm	Square	176 mm
Orion Fans OA180APL-22-1WB1868	3250 RPM	400 CFM	11.2 mł/min	Thermal Overload Protector (TOP)			1.8 kg	4 lbs	50000 Hrs	80 W	Tubeaxial	CE cURus TUV UR	IP68 - Dust Tight Waterproof	Steel	Ball		Aluminum	2 Wire Leads	230 VAC	65 dB	180 mm	Square	180 mm	65 mm
Orion Fans OA180AP-22-1WB1868	3250 RPM	380 CFM	10.64 m³/min	Thermal Overload Protector (TOP)	189.3 Pa	0.76 in H2O	1.9 kg	4.1 lbs	50000 Hrs	80 W	Tubeaxial	CE cURus TUV UR	IP68 - Dust Tight Waterproof	Steel	Ball	89 mm	Aluminum	2 Wire Leads	230 VAC	63 dB	176 mm	Square	176 mm
Orion Fans OA180AP-11-1WB	3175 RPM	409 CFM	11.45 mł/min	Thermal Overload Protector (TOP)	209.2 Pa	0.84 in H2O	1.8 kg	4 lbs	60000 Hrs	70 W	Tubeaxial	CE cURus TUV UR		Polybutylene Terephthalate (PBT)	Ball	89 mm	Aluminum	2 Wire Leads	115 VAC	62 dB(A)	180 mm	Square	180 mm		120 VAC	100 VAC	-20 °C	70 °C	-20 C	70 °C
Orion Fans OA180AP-22-1TB1869K	3250 RPM	380 CFM	10.64 m³/min	Thermal Overload Protector (TOP)	189.3 Pa	0.76 in H2O	1.9 kg	4.1 lbs	50000 Hrs	80 W	Tubeaxial	CE cURus TUV UR	IP69K	Steel	Ball	89 mm	Aluminum	2 Terminals	230 VAC	63 dB	176 mm	Square	176 mm
Orion Fans OA180APL-11-1WB1868	3250 RPM	400 CFM	11.2 mł/min	Thermal Overload Protector (TOP)			1.8 kg	4 lbs	50000 Hrs	80 W	Tubeaxial	CE cURus TUV UR	IP68 - Dust Tight Waterproof	Steel	Ball		Aluminum	2 Wire Leads	115 VAC	65 dB	180 mm	Square	180 mm	65 mm
Orion Fans OA180APL-11-1TB	3300 RPM	405 CFM	11.34 m³/min	Thermal Overload Protector (TOP)	206.7 Pa	0.83 in H2O	1.8 kg	4 lbs	60000 Hrs	70 W	Tubeaxial	cURus TUV		Polybutylene Terephthalate (PBT)	Ball		Aluminum	2 Terminals	115 VAC	60 dB(A)	180 mm	Square	180 mm	65 mm	130 VAC	60 VAC	-20 °C		-20 C	80 C	80 °C
Orion Fans OA180AP-11-1TB	3175 RPM	409 CFM	11.45 mł/min	Thermal Overload Protector (TOP)	209.2 Pa	0.84 in H2O	1.8 kg	4 lbs	60000 Hrs	70 W	Tubeaxial	CE cURus TUV UR		Polybutylene Terephthalate (PBT)	Ball	89 mm	Aluminum	2 Terminals	115 VAC	62 dB(A)	180 mm	Square	180 mm		120 VAC	100 VAC	-20 °C	70 °C	-20 C	70 °C
Orion Fans OA180APL-11-1TB1868	3250 RPM	400 CFM	11.2 mł/min	Thermal Overload Protector (TOP)			1.8 kg	4 lbs	50000 Hrs	80 W	Tubeaxial	CE cURus TUV UR	IP68 - Dust Tight Waterproof	Steel	Ball		Aluminum	2 Terminals	115 VAC	65 dB	180 mm	Square	180 mm	65 mm
Orion Fans OA180APL-22-1TB1868	3250 RPM	400 CFM	11.2 mł/min	Thermal Overload Protector (TOP)			1.8 kg	4 lbs	50000 Hrs	80 W	Tubeaxial	CE cURus TUV UR	IP68 - Dust Tight Waterproof	Steel	Ball		Aluminum	2 Terminals	230 VAC	65 dB	180 mm	Square	180 mm	65 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 87.37
		10	$ 78.52
		30	$ 77.42
		50	$ 72.44
		100	$ 70.78
Newark	Each	1	$ 109.50
		1000	$ 100.38

Description

General part information

OA180AP Series

Fan Tubeaxial 115VAC Square - 180mm L x 180mm H Ball 409.0 CFM (11.45m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Miscellaneous EN

Datasheet

Technical Data Sheet EN

Datasheet
