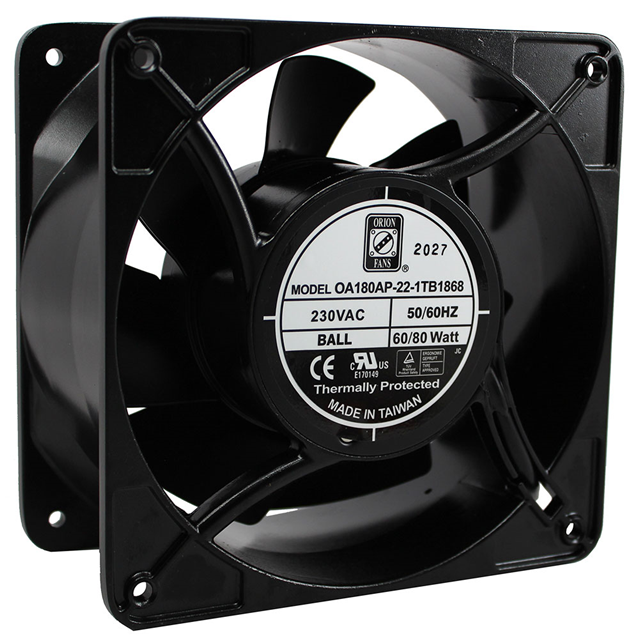

OA180AP-22-1TB1868

Active

Orion Fans

FAN 230AC 176X176X89MM IP68 TERM

Deep-Dive with AI

Search across all available documentation for this part.

OA180AP-22-1TB1868

Active

Orion Fans

FAN 230AC 176X176X89MM IP68 TERM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA180AP-22-1TB1868

Air Flow	380 CFM
Air Flow	10.64 m³/min
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Ingress Protection	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	50000 Hrs
Material - Blade	Steel
Material - Frame	Aluminum
Noise	63 dB
Power (Watts)	80 W
RPM	3250 RPM
Size / Dimension	Square
Size / Dimension [x]	176 mm
Size / Dimension [y]	176 mm
Static Pressure	189.3 Pa
Static Pressure	0.76 in H2O
Termination	2 Terminals
Voltage - Rated	230 VAC
Weight	1.9 kg
Weight	4.1 lbs
Width [y]	89 mm

OA180AP Series

Part	RPM	Air Flow	Air Flow	Features	Static Pressure	Static Pressure	Weight	Weight	Lifetime @ Temp.	Power (Watts)	Fan Type	Approval Agency	Ingress Protection	Material - Blade	Bearing Type	Width [y]	Material - Frame	Termination	Voltage - Rated	Noise	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Width	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]
Orion Fans OA180AP-22-1TB1868	3250 RPM	380 CFM	10.64 m³/min	Thermal Overload Protector (TOP)	189.3 Pa	0.76 in H2O	1.9 kg	4.1 lbs	50000 Hrs	80 W	Tubeaxial	CE cURus TUV UR	IP68 - Dust Tight Waterproof	Steel	Ball	89 mm	Aluminum	2 Terminals	230 VAC	63 dB	176 mm	Square	176 mm
Orion Fans OA180APL-22-1WB1868	3250 RPM	400 CFM	11.2 mł/min	Thermal Overload Protector (TOP)			1.8 kg	4 lbs	50000 Hrs	80 W	Tubeaxial	CE cURus TUV UR	IP68 - Dust Tight Waterproof	Steel	Ball		Aluminum	2 Wire Leads	230 VAC	65 dB	180 mm	Square	180 mm	65 mm
Orion Fans OA180AP-22-1WB1868	3250 RPM	380 CFM	10.64 m³/min	Thermal Overload Protector (TOP)	189.3 Pa	0.76 in H2O	1.9 kg	4.1 lbs	50000 Hrs	80 W	Tubeaxial	CE cURus TUV UR	IP68 - Dust Tight Waterproof	Steel	Ball	89 mm	Aluminum	2 Wire Leads	230 VAC	63 dB	176 mm	Square	176 mm
Orion Fans OA180AP-11-1WB	3175 RPM	409 CFM	11.45 mł/min	Thermal Overload Protector (TOP)	209.2 Pa	0.84 in H2O	1.8 kg	4 lbs	60000 Hrs	70 W	Tubeaxial	CE cURus TUV UR		Polybutylene Terephthalate (PBT)	Ball	89 mm	Aluminum	2 Wire Leads	115 VAC	62 dB(A)	180 mm	Square	180 mm		120 VAC	100 VAC	-20 °C	70 °C	-20 C	70 °C
Orion Fans OA180AP-22-1TB1869K	3250 RPM	380 CFM	10.64 m³/min	Thermal Overload Protector (TOP)	189.3 Pa	0.76 in H2O	1.9 kg	4.1 lbs	50000 Hrs	80 W	Tubeaxial	CE cURus TUV UR	IP69K	Steel	Ball	89 mm	Aluminum	2 Terminals	230 VAC	63 dB	176 mm	Square	176 mm
Orion Fans OA180APL-11-1WB1868	3250 RPM	400 CFM	11.2 mł/min	Thermal Overload Protector (TOP)			1.8 kg	4 lbs	50000 Hrs	80 W	Tubeaxial	CE cURus TUV UR	IP68 - Dust Tight Waterproof	Steel	Ball		Aluminum	2 Wire Leads	115 VAC	65 dB	180 mm	Square	180 mm	65 mm
Orion Fans OA180APL-11-1TB	3300 RPM	405 CFM	11.34 m³/min	Thermal Overload Protector (TOP)	206.7 Pa	0.83 in H2O	1.8 kg	4 lbs	60000 Hrs	70 W	Tubeaxial	cURus TUV		Polybutylene Terephthalate (PBT)	Ball		Aluminum	2 Terminals	115 VAC	60 dB(A)	180 mm	Square	180 mm	65 mm	130 VAC	60 VAC	-20 °C		-20 C	80 C	80 °C
Orion Fans OA180AP-11-1TB	3175 RPM	409 CFM	11.45 mł/min	Thermal Overload Protector (TOP)	209.2 Pa	0.84 in H2O	1.8 kg	4 lbs	60000 Hrs	70 W	Tubeaxial	CE cURus TUV UR		Polybutylene Terephthalate (PBT)	Ball	89 mm	Aluminum	2 Terminals	115 VAC	62 dB(A)	180 mm	Square	180 mm		120 VAC	100 VAC	-20 °C	70 °C	-20 C	70 °C
Orion Fans OA180APL-11-1TB1868	3250 RPM	400 CFM	11.2 mł/min	Thermal Overload Protector (TOP)			1.8 kg	4 lbs	50000 Hrs	80 W	Tubeaxial	CE cURus TUV UR	IP68 - Dust Tight Waterproof	Steel	Ball		Aluminum	2 Terminals	115 VAC	65 dB	180 mm	Square	180 mm	65 mm
Orion Fans OA180APL-22-1TB1868	3250 RPM	400 CFM	11.2 mł/min	Thermal Overload Protector (TOP)			1.8 kg	4 lbs	50000 Hrs	80 W	Tubeaxial	CE cURus TUV UR	IP68 - Dust Tight Waterproof	Steel	Ball		Aluminum	2 Terminals	230 VAC	65 dB	180 mm	Square	180 mm	65 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 98.25

Description

General part information

OA180AP Series

Fan Tubeaxial 230VAC Square - 176mm L x 176mm H Ball 380.0 CFM (10.64m³/min) 2 Terminals

Documents

Technical documentation and resources

No documents available
