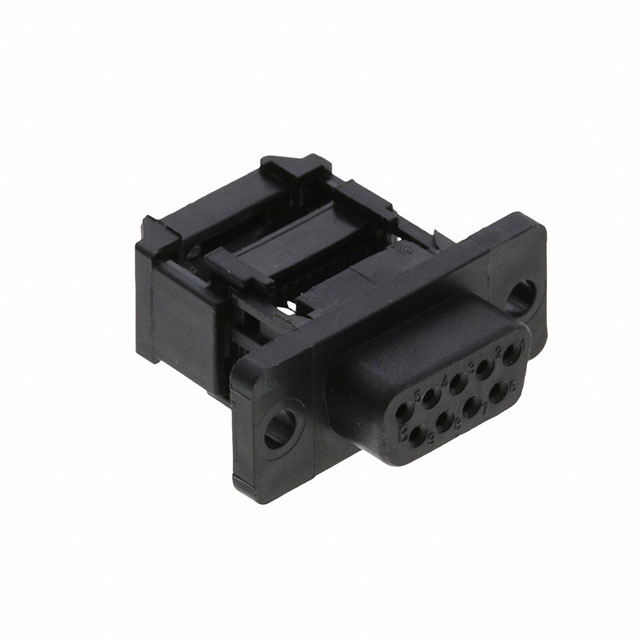

L117DEFRB09S
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 9POS IDC
Deep-Dive with AI
Search across all available documentation for this part.
L117DEFRB09S
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 9POS IDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L117DEFRB09S |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Feed Through, Strain Relief |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Plastic |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | IDC, Ribbon Cable |
| Voltage Rating | 250 VDC |
| Wire Gauge | 26 AWG |
L117DE Series
| Part | Features | Number of Rows | Shell Material, Finish | Color | Voltage Rating | Material Flammability Rating | Flange Feature | Contact Material | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Positions | Connector Style | Current Rating (Amps) | Mounting Type | Connector Type | Dielectric Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | Feed Through Strain Relief | 2 | Nickel Plated Steel | Black | 250 VDC | UL94 V-0 | Female Screwlock (M3) Mating Side | Phosphor Bronze | 26 AWG | 125 °C | -40 °C | Signal | Gold | 15 µin | 0.38 µm | IDC Ribbon Cable | 9 | D-Sub | 5 A | Free Hanging (In-Line) | Receptacle Female Sockets | Thermoplastic Glass Filled | DE E | 1 |
Amphenol ICC (Commercial Products) | Feed Through Grounding Indents Strain Relief | 2 | Black | 250 VDC | UL94 V-0 | Housing/Shell (Unthreaded) | Brass | 26 AWG | 105 ░C | -55 °C | Signal | Gold | 15 µin | 0.38 µm | IDC Ribbon Cable | 9 | D-Sub | 3 A | Free Hanging (In-Line) | Male Pins Plug | Thermoplastic Glass Filled | DE E | 1 | |
Amphenol ICC (Commercial Products) | Feed Through Grounding Indents Strain Relief | 2 | Black | 250 VDC | UL94 V-0 | Cable Side | Brass | 26 AWG | 105 ░C | -55 °C | Signal | Gold | 15 µin | 0.38 µm | IDC Ribbon Cable | 9 | D-Sub | 3 A | Free Hanging (In-Line) | Male Pins Plug | Thermoplastic Glass Filled | DE E | 1 | |
Amphenol ICC (Commercial Products) | Feed Through Strain Relief | 2 | Black | 250 VDC | UL94 V-0 | Cable Side | Brass | 26 AWG | 105 ░C | -55 °C | Signal | Gold | 15 µin | 0.38 µm | IDC Ribbon Cable | 9 | D-Sub | 3 A | Free Hanging (In-Line) | Receptacle Female Sockets | Thermoplastic Glass Filled | DE E | 1 | |
Amphenol ICC (Commercial Products) | Feed Through Grounding Indents Strain Relief | 2 | Nickel Plated Steel | Black | 250 VDC | UL94 V-0 | Housing/Shell (Unthreaded) | Brass | 26 AWG | 105 ░C | -55 °C | Signal | Gold | 15 µin | 0.38 µm | IDC Ribbon Cable | 9 | D-Sub | 3 A | Free Hanging (In-Line) | Male Pins Plug | Thermoplastic Glass Filled | DE E | 1 |
Amphenol ICC (Commercial Products) | Feed Through Strain Relief | 2 | Black | 250 VDC | UL94 V-0 | Housing/Shell (Unthreaded) | Brass | 26 AWG | 105 ░C | -55 °C | Signal | Gold | 15 µin | 0.38 µm | IDC Ribbon Cable | 9 | D-Sub | 3 A | Free Hanging (In-Line) | Receptacle Female Sockets | Thermoplastic Glass Filled | DE E | 1 | |
Amphenol ICC (Commercial Products) | Feed Through Strain Relief | 2 | Plastic | Black | 250 VDC | UL94 V-0 | Housing/Shell (Unthreaded) | Brass | 26 AWG | 105 ░C | -55 °C | Signal | Gold | 15 µin | 0.38 µm | IDC Ribbon Cable | 9 | D-Sub | 3 A | Free Hanging (In-Line) | Receptacle Female Sockets | Thermoplastic Glass Filled | DE E | 1 |
Amphenol ICC (Commercial Products) | Feed Through Strain Relief | 2 | Nickel Plated Steel | Black | 250 VDC | UL94 V-0 | Female Screwlock (4-40) Mating Side | Phosphor Bronze | 26 AWG | 125 °C | -40 °C | Signal | Gold | 15 µin | 0.38 µm | IDC Ribbon Cable | 9 | D-Sub | 5 A | Free Hanging (In-Line) | Receptacle Female Sockets | Thermoplastic Glass Filled | DE E | 1 |
Amphenol ICC (Commercial Products) | Feed Through Grounding Indents Strain Relief | 2 | Nickel Plated Steel | Black | 250 VDC | UL94 V-0 | Female Screwlock (M3) Mating Side | Brass | 26 AWG | 125 °C | -40 °C | Signal | Gold | 15 µin | 0.38 µm | IDC Ribbon Cable | 9 | D-Sub | 5 A | Free Hanging (In-Line) | Male Pins Plug | Thermoplastic Glass Filled | DE E | 1 |
Amphenol ICC (Commercial Products) | Feed Through Grounding Indents Strain Relief | 2 | Nickel Plated Steel | Black | 250 VDC | UL94 V-0 | Female Screwlock (4-40) Mating Side | Brass | 26 AWG | 125 °C | -40 °C | Signal | Gold | 15 µin | 0.38 µm | IDC Ribbon Cable | 9 | D-Sub | 5 A | Free Hanging (In-Line) | Male Pins Plug | Thermoplastic Glass Filled | DE E | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.93 | |
| 10 | $ 3.00 | |||
| 25 | $ 2.71 | |||
| 40 | $ 2.57 | |||
| 80 | $ 2.38 | |||
| 230 | $ 2.12 | |||
| 440 | $ 1.98 | |||
| 945 | $ 1.84 | |||
| 2400 | $ 1.68 | |||
Description
General part information
L117DE Series
9 Position D-Sub Receptacle, Female Sockets Connector
