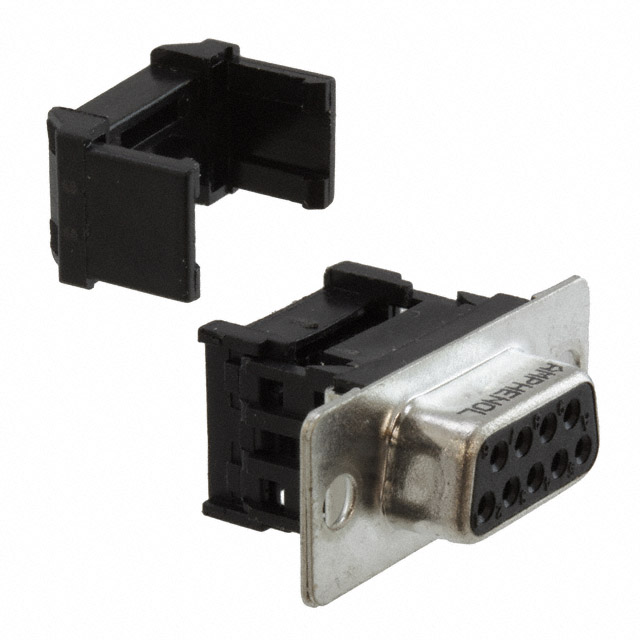

L117DEFRA09S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS IDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L117DEFRA09S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS IDC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L117DEFRA09S

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Feed Through, Strain Relief
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	IDC, Ribbon Cable
Voltage Rating	250 VDC
Wire Gauge	26 AWG

L117DE Series

Part	Features	Number of Rows	Shell Material, Finish	Color	Voltage Rating	Material Flammability Rating	Flange Feature	Contact Material	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions	Connector Style	Current Rating (Amps)	Mounting Type	Connector Type	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol ICC (Commercial Products) L117DEFRAA09S	Feed Through Strain Relief	2	Nickel Plated Steel	Black	250 VDC	UL94 V-0	Female Screwlock (M3) Mating Side	Phosphor Bronze	26 AWG	125 °C	-40 °C	Signal	Gold	15 µin	0.38 µm	IDC Ribbon Cable	9	D-Sub	5 A	Free Hanging (In-Line)	Receptacle Female Sockets	Thermoplastic Glass Filled	DE E	1
Amphenol ICC (Commercial Products) L117DEFRA09P	Feed Through Grounding Indents Strain Relief	2		Black	250 VDC	UL94 V-0	Housing/Shell (Unthreaded)	Brass	26 AWG	105 ░C	-55 °C	Signal	Gold	15 µin	0.38 µm	IDC Ribbon Cable	9	D-Sub	3 A	Free Hanging (In-Line)	Male Pins Plug	Thermoplastic Glass Filled	DE E	1
Amphenol ICC (Commercial Products) L117DEFRDA09P	Feed Through Grounding Indents Strain Relief	2		Black	250 VDC	UL94 V-0	Cable Side	Brass	26 AWG	105 ░C	-55 °C	Signal	Gold	15 µin	0.38 µm	IDC Ribbon Cable	9	D-Sub	3 A	Free Hanging (In-Line)	Male Pins Plug	Thermoplastic Glass Filled	DE E	1
Amphenol ICC (Commercial Products) L117DEFRDA09S	Feed Through Strain Relief	2		Black	250 VDC	UL94 V-0	Cable Side	Brass	26 AWG	105 ░C	-55 °C	Signal	Gold	15 µin	0.38 µm	IDC Ribbon Cable	9	D-Sub	3 A	Free Hanging (In-Line)	Receptacle Female Sockets	Thermoplastic Glass Filled	DE E	1
Amphenol ICC (Commercial Products) L117DEFRB09P	Feed Through Grounding Indents Strain Relief	2	Nickel Plated Steel	Black	250 VDC	UL94 V-0	Housing/Shell (Unthreaded)	Brass	26 AWG	105 ░C	-55 °C	Signal	Gold	15 µin	0.38 µm	IDC Ribbon Cable	9	D-Sub	3 A	Free Hanging (In-Line)	Male Pins Plug	Thermoplastic Glass Filled	DE E	1
Amphenol ICC (Commercial Products) L117DEFRA09S	Feed Through Strain Relief	2		Black	250 VDC	UL94 V-0	Housing/Shell (Unthreaded)	Brass	26 AWG	105 ░C	-55 °C	Signal	Gold	15 µin	0.38 µm	IDC Ribbon Cable	9	D-Sub	3 A	Free Hanging (In-Line)	Receptacle Female Sockets	Thermoplastic Glass Filled	DE E	1
Amphenol ICC (Commercial Products) L117DEFRB09S	Feed Through Strain Relief	2	Plastic	Black	250 VDC	UL94 V-0	Housing/Shell (Unthreaded)	Brass	26 AWG	105 ░C	-55 °C	Signal	Gold	15 µin	0.38 µm	IDC Ribbon Cable	9	D-Sub	3 A	Free Hanging (In-Line)	Receptacle Female Sockets	Thermoplastic Glass Filled	DE E	1
Amphenol ICC (Commercial Products) L117DEFRCA09S	Feed Through Strain Relief	2	Nickel Plated Steel	Black	250 VDC	UL94 V-0	Female Screwlock (4-40) Mating Side	Phosphor Bronze	26 AWG	125 °C	-40 °C	Signal	Gold	15 µin	0.38 µm	IDC Ribbon Cable	9	D-Sub	5 A	Free Hanging (In-Line)	Receptacle Female Sockets	Thermoplastic Glass Filled	DE E	1
Amphenol ICC (Commercial Products) L117DEFRAA09P	Feed Through Grounding Indents Strain Relief	2	Nickel Plated Steel	Black	250 VDC	UL94 V-0	Female Screwlock (M3) Mating Side	Brass	26 AWG	125 °C	-40 °C	Signal	Gold	15 µin	0.38 µm	IDC Ribbon Cable	9	D-Sub	5 A	Free Hanging (In-Line)	Male Pins Plug	Thermoplastic Glass Filled	DE E	1
Amphenol ICC (Commercial Products) L117DEFRCA09P	Feed Through Grounding Indents Strain Relief	2	Nickel Plated Steel	Black	250 VDC	UL94 V-0	Female Screwlock (4-40) Mating Side	Brass	26 AWG	125 °C	-40 °C	Signal	Gold	15 µin	0.38 µm	IDC Ribbon Cable	9	D-Sub	5 A	Free Hanging (In-Line)	Male Pins Plug	Thermoplastic Glass Filled	DE E	1
