SLR-342MCT32

NRND

Rohm Semiconductor

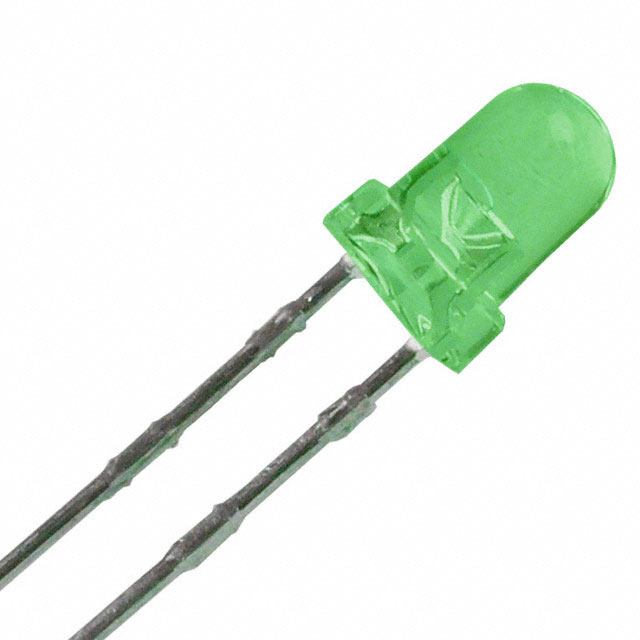

LED GREEN CLEAR T-1 T/H

Search across all available documentation for this part.

NRND

Rohm Semiconductor

LED GREEN CLEAR T-1 T/H

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Lens Style	Lens Color	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Mounting Type	Lens Size [diameter]	Millicandela Rating	Wavelength - Dominant	Color	Viewing Angle [custom]	Lens Transparency	Configuration	Current - Test	Wavelength - Peak
Rohm Semiconductor SLR-342VRTJ7	Radial	Round with Domed Top	Red	T-1	2 V	Through Hole	3.1 mm	16 mcd	630 nm	Red	40 °	Diffused	Standard	10 mA
Rohm Semiconductor SLR-342VCT32	Radial	Round with Domed Top	Red	T-1	2 V	Through Hole	3.1 mm	25 mcd	630 nm	Red	40 °	Clear	Standard	10 mA
Rohm Semiconductor SLR-342VRT32	Radial	Round with Domed Top	Red	T-1	2 V	Through Hole	3.1 mm	16 mcd	630 nm	Red	40 °	Diffused	Standard	10 mA
Rohm Semiconductor SLR-342VC3F	Radial	Round with Domed Top	Red	T-1	2 V	Through Hole	3.1 mm	25 mcd	630 nm	Red	40 °	Clear	Standard	10 mA
Rohm Semiconductor SLR-342YYT32	Radial	Round with Domed Top	Yellow	T-1	2.1 V	Through Hole	3.1 mm	10 mcd	587 nm	Yellow	40 °	Diffused	Standard	10 mA
Rohm Semiconductor SLR-342MCT32	Radial	Round with Domed Top	Green	T-1	2.1 V	Through Hole	3.1 mm	25 mcd	572 nm	Green	40 °	Clear	Standard	10 mA
Rohm Semiconductor SLR-342MGTC7	Radial	Round with Domed Top	Green		2.1 V	Through Hole	3.1 mm	16 mcd		Green	40 °	Diffused	Standard	10 mA	563 nm
Rohm Semiconductor SLR-342MGT32	Radial	Round with Domed Top	Green	T-1	2.1 V	Through Hole	3.1 mm	16 mcd	572 nm	Green	40 °	Diffused	Standard	10 mA
Rohm Semiconductor SLR-342DUTE7	Radial	Round with Domed Top	Orange		2 V	Through Hole	3.1 mm	16 mcd			40 °	Diffused	Standard	10 mA	610 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green 572nm LED Indication - Discrete 2.1V Radial
