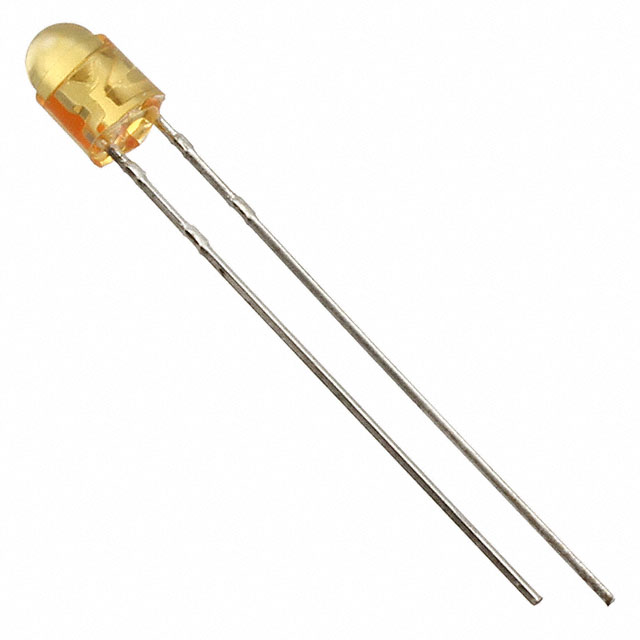

SLR-342DUTE7

NRND

Rohm Semiconductor

LED ORANGE DIFFUSED T/H

Search across all available documentation for this part.

NRND

Rohm Semiconductor

LED ORANGE DIFFUSED T/H

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Lens Style	Lens Color	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Mounting Type	Lens Size [diameter]	Millicandela Rating	Wavelength - Dominant	Color	Viewing Angle [custom]	Lens Transparency	Configuration	Current - Test	Wavelength - Peak
Rohm Semiconductor SLR-342VRTJ7	Radial	Round with Domed Top	Red	T-1	2 V	Through Hole	3.1 mm	16 mcd	630 nm	Red	40 °	Diffused	Standard	10 mA
Rohm Semiconductor SLR-342VCT32	Radial	Round with Domed Top	Red	T-1	2 V	Through Hole	3.1 mm	25 mcd	630 nm	Red	40 °	Clear	Standard	10 mA
Rohm Semiconductor SLR-342VRT32	Radial	Round with Domed Top	Red	T-1	2 V	Through Hole	3.1 mm	16 mcd	630 nm	Red	40 °	Diffused	Standard	10 mA
Rohm Semiconductor SLR-342VC3F	Radial	Round with Domed Top	Red	T-1	2 V	Through Hole	3.1 mm	25 mcd	630 nm	Red	40 °	Clear	Standard	10 mA
Rohm Semiconductor SLR-342YYT32	Radial	Round with Domed Top	Yellow	T-1	2.1 V	Through Hole	3.1 mm	10 mcd	587 nm	Yellow	40 °	Diffused	Standard	10 mA
Rohm Semiconductor SLR-342MCT32	Radial	Round with Domed Top	Green	T-1	2.1 V	Through Hole	3.1 mm	25 mcd	572 nm	Green	40 °	Clear	Standard	10 mA
Rohm Semiconductor SLR-342MGTC7	Radial	Round with Domed Top	Green		2.1 V	Through Hole	3.1 mm	16 mcd		Green	40 °	Diffused	Standard	10 mA	563 nm
Rohm Semiconductor SLR-342MGT32	Radial	Round with Domed Top	Green	T-1	2.1 V	Through Hole	3.1 mm	16 mcd	572 nm	Green	40 °	Diffused	Standard	10 mA
Rohm Semiconductor SLR-342DUTE7	Radial	Round with Domed Top	Orange		2 V	Through Hole	3.1 mm	16 mcd			40 °	Diffused	Standard	10 mA	610 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Orange LED Indication - Discrete 2V Radial
