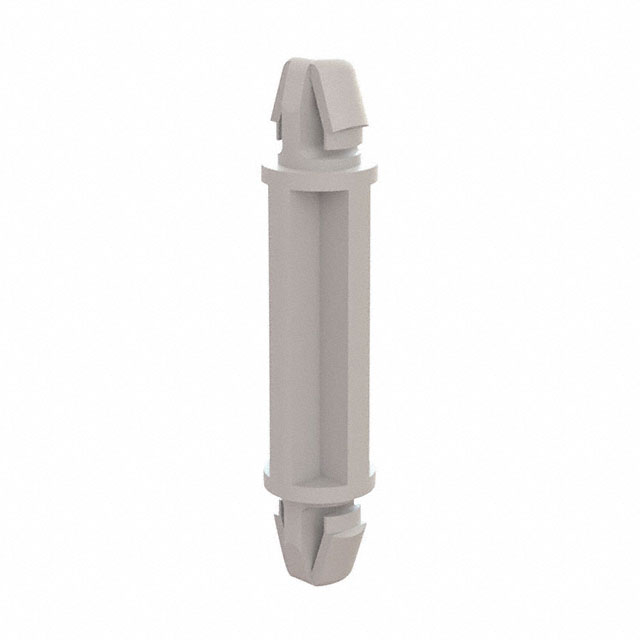

DLSP-3-8M-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 8MM
Deep-Dive with AI
Search across all available documentation for this part.
DLSP-3-8M-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 8MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLSP-3-8M-01 |
|---|---|
| Between Board Height [z] | 0.315 in |
| Between Board Height [z] | 8 mm |
| Holding Type | Snap Lock |
| Length - Overall [x] | 0.728 in |
| Length - Overall [x] | 18.5 mm |
| Material | Nylon |
| Mounting Hole Diameter | 4.8 mm |
| Mounting Hole Diameter | 0.189 in |
| Mounting Panel Thickness | 0.063 in |
| Mounting Panel Thickness | 1.6 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 1.6 mm |
| Support Panel Thickness | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.14 | |
| 5 | $ 0.12 | |||
| 10 | $ 0.10 | |||
| 25 | $ 0.09 | |||
| 50 | $ 0.08 | |||
| 100 | $ 0.08 | |||
| 250 | $ 0.07 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
Description
General part information
DLSP-3 Series
Board Support Snap Lock / Snap Lock Nylon 0.315" (8.00mm)
Documents
Technical documentation and resources
No documents available
