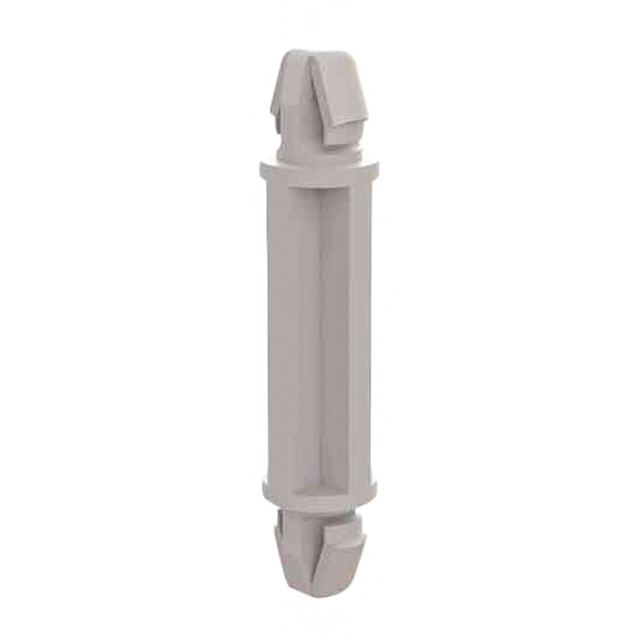

DLSP-3-4M-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 4MM
Deep-Dive with AI
Search across all available documentation for this part.
DLSP-3-4M-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 4MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLSP-3-4M-01 |
|---|---|
| Between Board Height | 4 mm |
| Between Board Height | 0.157 in |
| Holding Type | Snap Lock |
| Length - Overall [x] | 0.571 in |
| Length - Overall [x] | 14.5 mm |
| Material | Nylon |
| Mounting Hole Diameter | 4.8 mm |
| Mounting Hole Diameter | 0.189 in |
| Mounting Panel Thickness | 0.063 in |
| Mounting Panel Thickness | 1.6 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 1.6 mm |
| Support Panel Thickness | 0.063 in |
DLSP-3 Series
| Part | Between Board Height | Between Board Height | Length - Overall [x] | Length - Overall [x] | Mounting Type | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Mounting Panel Thickness | Mounting Panel Thickness | Support Panel Thickness | Support Panel Thickness | Material | Holding Type | Mounting Hole Diameter | Mounting Hole Diameter | Between Board Height [z] | Between Board Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Essentra Access Solutions | 6 mm | 0.236 in | 0.65 " | 16.5 mm | Snap Lock | 0.157 " | 3.99 mm | 0.063 in | 1.6 mm | 1.6 mm | 0.063 in | Nylon | Snap Lock | 4.8 mm | 0.189 in | ||
Essentra Access Solutions | 0.728 in | 18.5 mm | Snap Lock | 0.157 " | 3.99 mm | 0.063 in | 1.6 mm | 1.6 mm | 0.063 in | Nylon | Snap Lock | 4.8 mm | 0.189 in | 0.315 in | 8 mm | ||
Essentra Access Solutions | 14 mm | 0.551 in | 0.965 in | 24.51 mm | Snap Lock | 0.157 " | 3.99 mm | 0.063 in | 1.6 mm | 1.6 mm | 0.063 in | Nylon | Snap Lock | 4.8 mm | 0.189 in | ||
Essentra Access Solutions | 4 mm | 0.157 in | 0.571 in | 14.5 mm | Snap Lock | 0.157 " | 3.99 mm | 0.063 in | 1.6 mm | 1.6 mm | 0.063 in | Nylon | Snap Lock | 4.8 mm | 0.189 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.30 | |
| 5 | $ 0.26 | |||
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.15 | |||
Description
General part information
DLSP-3 Series
Board Support Snap Lock / Snap Lock Nylon 0.157" (4.00mm)
Documents
Technical documentation and resources
No documents available
