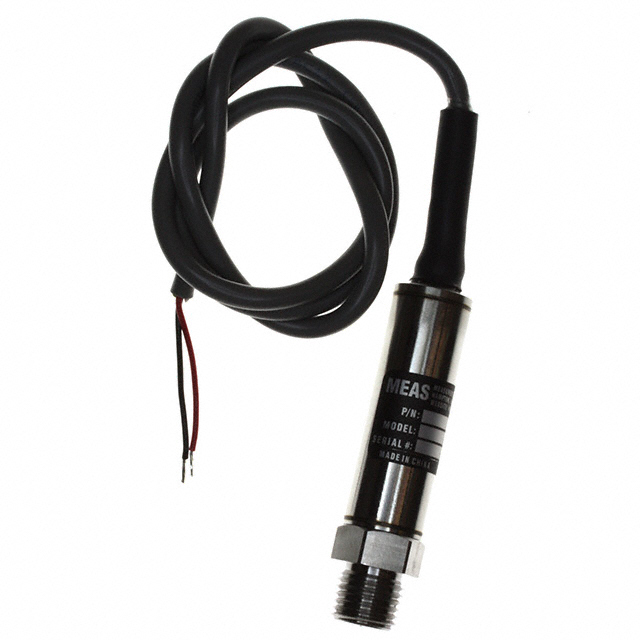

US381-000005-030PA

Active

TE Connectivity Measurement Specialties

SENSOR 30PSIA 1/4"NPT .02A

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR 30PSIA 1/4"NPT .02A

Technical Specifications

Parameters and characteristics for this part

Specification	US381-000005-030PA

Accuracy	0.25 %
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	90 PSI
Maximum Pressure [Max]	620.53 kPa
Operating Pressure	206.84 kPa
Operating Pressure	30 PSI
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output [Max]	20 mA
Output [Min]	4 mA
Output Type	Analog Current
Package / Case	Cylinder
Port Size [custom]	NPT
Port Size [custom]	Male
Port Size [x]	0.25 "
Port Size [x]	6.35 mm
Port Style	Threaded
Termination Style	Cable
Voltage - Supply [Max]	14 V
Voltage - Supply [Min]	2.5 V

Part	Port Style	Applications	Package / Case	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Termination Style	Output [Max]	Output [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Accuracy	Operating Pressure [custom]	Operating Pressure [custom]	Operating Pressure	Operating Pressure
TE Connectivity Measurement Specialties US381-000005-015PA	Threaded	Industrial Automation	Cylinder	NPT	0.25 "	6.35 mm	Male	310.26 kPa	45 PSI	-40 °C	105 ░C	Analog Current	Cable	20 mA	4 mA	30 VDC	9 V	Amplified Output Temperature Compensated	0.25 %	15 PSI	103.42 kPa
TE Connectivity Measurement Specialties US381-000005-030PA	Threaded		Cylinder	NPT	0.25 "	6.35 mm	Male	620.53 kPa	90 PSI	-40 °C	105 ░C	Analog Current	Cable	20 mA	4 mA	14 V	2.5 V	Amplified Output Temperature Compensated	0.25 %			206.84 kPa	30 PSI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 214.38

General part information

Pressure Sensor 30PSI (206.84kPa) Absolute Male - 1/4" (6.35mm) NPT 4 mA ~ 20 mA Cylinder
