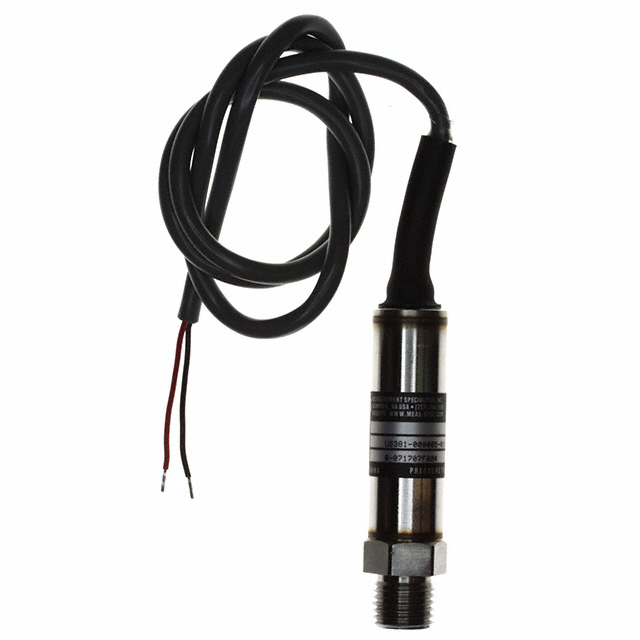

US381-000005-015PA

Active

TE Connectivity Measurement Specialties

SENSOR 15PSIA 1/4NPT 4-20MA 2'

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR 15PSIA 1/4NPT 4-20MA 2'

Technical Specifications

Parameters and characteristics for this part

Specification	US381-000005-015PA

Accuracy	0.25 %
Applications	Industrial Automation
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	310.26 kPa
Maximum Pressure [Max]	45 PSI
Operating Pressure [custom]	15 PSI
Operating Pressure [custom]	103.42 kPa
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output [Max]	20 mA
Output [Min]	4 mA
Output Type	Analog Current
Package / Case	Cylinder
Port Size [custom]	NPT
Port Size [custom]	Male
Port Size [x]	0.25 "
Port Size [x]	6.35 mm
Port Style	Threaded
Termination Style	Cable
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	9 V

Part	Port Style	Applications	Package / Case	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Termination Style	Output [Max]	Output [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Accuracy	Operating Pressure [custom]	Operating Pressure [custom]	Operating Pressure	Operating Pressure
TE Connectivity Measurement Specialties US381-000005-015PA	Threaded	Industrial Automation	Cylinder	NPT	0.25 "	6.35 mm	Male	310.26 kPa	45 PSI	-40 °C	105 ░C	Analog Current	Cable	20 mA	4 mA	30 VDC	9 V	Amplified Output Temperature Compensated	0.25 %	15 PSI	103.42 kPa
TE Connectivity Measurement Specialties US381-000005-030PA	Threaded		Cylinder	NPT	0.25 "	6.35 mm	Male	620.53 kPa	90 PSI	-40 °C	105 ░C	Analog Current	Cable	20 mA	4 mA	14 V	2.5 V	Amplified Output Temperature Compensated	0.25 %			206.84 kPa	30 PSI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR 15PSIA 1/4NPT 4-20MA 2'

Technical documentation and resources

No documents available
