45-1231.11E6.000.101

Active

EAO

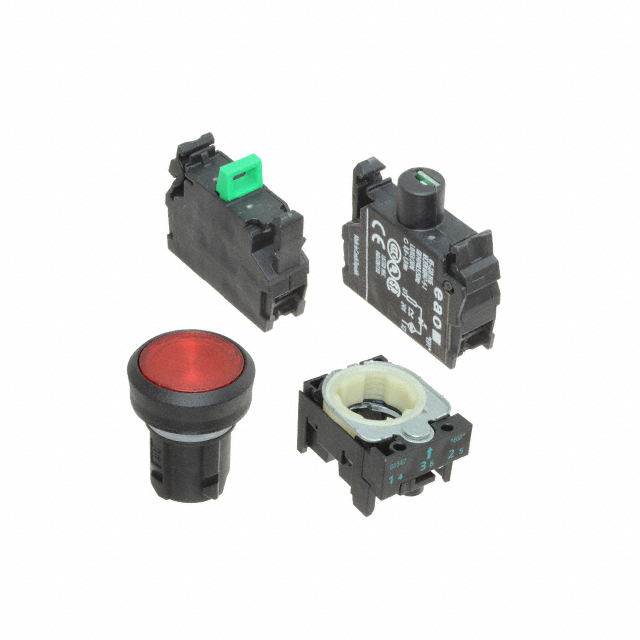

INDUSTRIAL PUSHBUTTON SWITCH, 45 SERIES, 22 MM, SPST-NO, ON-OFF, ROUND, TRANSPARENT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +1

45-1231.11E6.000.101

Active

EAO

INDUSTRIAL PUSHBUTTON SWITCH, 45 SERIES, 22 MM, SPST-NO, ON-OFF, ROUND, TRANSPARENT

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45-1231.11E6.000.101

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Clear (Red Filter/Diffuser)
Current Rating (Amps)	10 A
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	24 VAC/DC
Ingress Protection	IP69K, IP67, IP66
Mechanical Life	3000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Illuminated, Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

45-1231 Series

Trimmer Resistors - SMD

Part	Lamp Color	Lens Size [diameter]	Termination Style	Type	Panel Cutout Shape	Ingress Protection	Lens Transparency	Lens Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Actuator Type	Actuator Marking	Mechanical Life	Mounting Type	Voltage Rating - DC	Voltage Rating - AC	Illumination Voltage (Nominal)	Color - Actuator/Cap	Illumination Type, Color	Circuit	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Panel Cutout Dimensions [diameter]	Approval Agency
EAO 45-2T07.10J0.000	Blue	29.5 mm	Screw Terminal	LED	Round	IP66 IP67 IP69K	Clear	Blue	0.88 in	22.3 mm
EAO 45-1231.21E6.000.102			Screw Terminal	Illuminated Standard		IP66 IP67 IP69K					Button Flush Round	No Marking	3000000 Cycles	Panel Mount Front	500 V	500 V	24 VAC/DC	Clear (Red Filter/Diffuser)	LED Red	SPST-NC	10 A	On-Mom	70 °C	-25 °C
EAO 45-1231.21H8.000.101			Screw Terminal	Illuminated Standard		IP66 IP67 IP69K					Button Flush Round	No Marking	3000000 Cycles	Panel Mount Front	500 V	500 V	230 VAC	Clear	Green LED	SPST-NO	10 A	Off-Mom	70 °C	-25 °C
EAO 45-1231.21H6.000.101			Screw Terminal	Illuminated Standard		IP66 IP67 IP69K					Button Flush Round	No Marking	3000000 Cycles	Panel Mount Front	500 V	500 V	24 VAC/DC	Clear	Green LED	SPST-NO	10 A	Off-Mom	70 °C	-25 °C
EAO 45-1231.21G8.000.101			Screw Terminal	Illuminated Standard		IP66 IP67 IP69K					Button Flush Round	No Marking	3000000 Cycles	Panel Mount Front	500 V	500 V	230 VAC	Clear (Yellow Filter/Diffuser)	LED Yellow	SPST-NO	10 A	Off-Mom	70 °C	-25 °C
EAO 45-1231.11E6.000.101			Screw Terminal	Illuminated Standard		IP66 IP67 IP69K					Button Flush Round	No Marking	3000000 Cycles	Panel Mount Front	500 V	500 V	24 VAC/DC	Clear (Red Filter/Diffuser)	LED Red	SPST-NO	10 A	Off-Mom	70 °C	-25 °C
