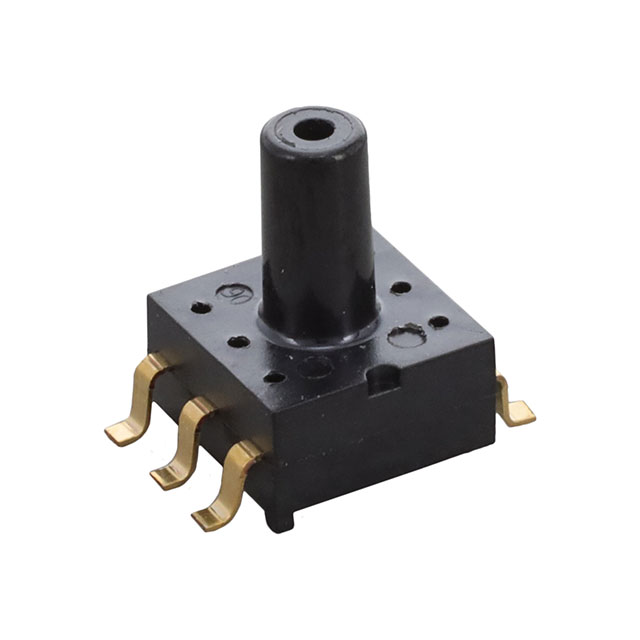

BLCR-L10D-U2
ActiveAmphenol All Sensors Corporation
SENSOR 0.36PSIG 0.12" .032V
Deep-Dive with AI
Search across all available documentation for this part.
BLCR-L10D-U2
ActiveAmphenol All Sensors Corporation
SENSOR 0.36PSIG 0.12" .032V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BLCR-L10D-U2 |
|---|---|
| Accuracy | 0.5 % |
| Applications | Board Mount |
| Maximum Pressure [Max] | 7.25 PSI |
| Maximum Pressure [Max] | 50 kPa |
| Mounting Type | Surface Mount |
| Operating Pressure | 2.5 kPa |
| Operating Pressure | 0.36 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output [Max] | 32 mV |
| Output [Min] | 0 mV |
| Output Type | Analog Voltage |
| Package / Case | 6-SMD, Gull Wing, Top Port |
| Port Size | Male - Tube |
| Port Size | 3 mm, 0.12 " |
| Port Style | Barbless |
| Pressure Type | Gauge |
| Termination Style | Gull Wing |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 40.40 | |
| 5 | $ 34.07 | |||
| 10 | $ 31.67 | |||
| 25 | $ 28.74 | |||
| 50 | $ 26.71 | |||
| 100 | $ 24.83 | |||
Description
General part information
BLCR-L10D Series
Pressure Sensor ±0.36PSI (±2.5kPa) Gauge Male - 0.12" (3mm) Tube 0 mV ~ 32 mV 6-SMD, Gull Wing, Top Port
