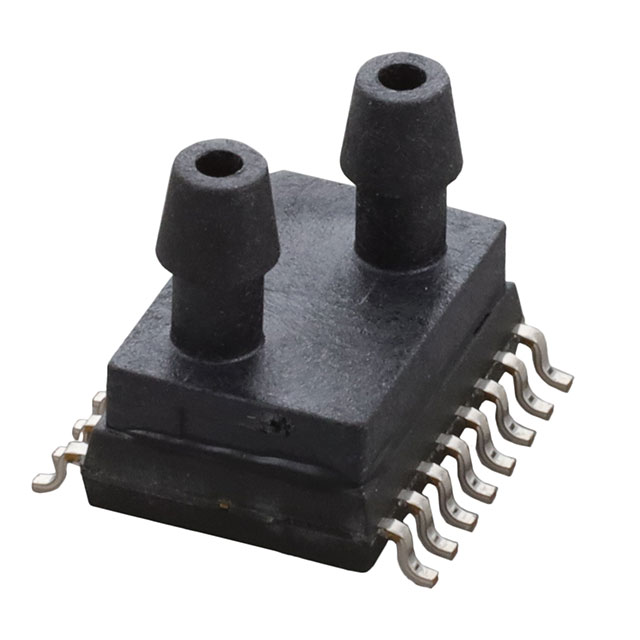

BLCR-L10D-D4
ActiveAmphenol All Sensors Corporation
SENSOR 0.36PSID 0.12" .032V
Deep-Dive with AI
Search across all available documentation for this part.
BLCR-L10D-D4
ActiveAmphenol All Sensors Corporation
SENSOR 0.36PSID 0.12" .032V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BLCR-L10D-D4 |
|---|---|
| Accuracy | 0.5 % |
| Applications | Board Mount |
| Maximum Pressure [Max] | 7.25 PSI |
| Maximum Pressure [Max] | 50 kPa |
| Mounting Type | Surface Mount |
| Operating Pressure | 2.5 kPa |
| Operating Pressure | 0.36 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output [Max] | 32 mV |
| Output [Min] | 0 mV |
| Output Type | Analog Voltage |
| Package / Case | 16-SOIC Module, Dual Top Ports |
| Port Size | 0.12 " |
| Port Size | Male, Tube, Dual |
| Port Size | 3 mm |
| Port Style | Barbed |
| Pressure Type | Differential |
| Termination Style | Gull Wing |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 32.40 | |
| 5 | $ 33.34 | |||
| 10 | $ 32.24 | |||
Description
General part information
BLCR-L10D Series
Pressure Sensor ±0.36PSI (±2.5kPa) Differential Male - 0.12" (3mm) Tube, Dual 0 mV ~ 32 mV 16-SOIC Module, Dual Top Ports
