SVF16-5,08
ActiveAltech Corporation

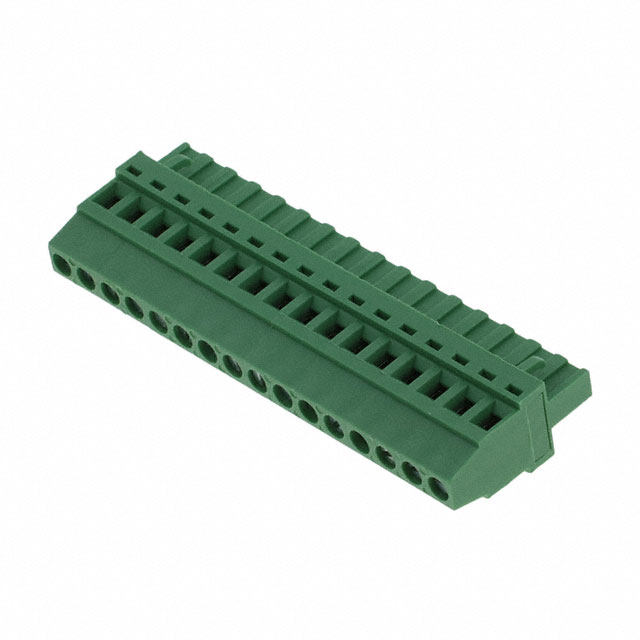

TERM BLOCK PLUG 16POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SVF16-5,08
ActiveAltech Corporation
TERM BLOCK PLUG 16POS 5.08MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SVF16-5,08 |
|---|---|
| Color | Green |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Nickel |
| Current - IEC | 12 A |
| Current - UL | 12 A |
| Features | Retention Latches (Wire Side) |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height | 1.087 in |
| Insulation Height | 27.6 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 16 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Plug Wire Entry | 90 ° |
| Positions Per Level | 16 |
| Screw Size | M3 |
| Termination Style | Screw - Rising Cage Clamp |
| Torque - Screw | 0.51 Nm |
| Torque - Screw | 4.5 Lb-In |
| Type | Plug, Female Sockets |
| Voltage - IEC | 250 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG [Max] | 30 AWG |
| Wire Gauge or Range - AWG [Min] | 14 AWG |
| Wire Strip Length | 9 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.19 | |
| 10 | $ 9.85 | |||
| 25 | $ 9.29 | |||
| 50 | $ 8.84 | |||
| 100 | $ 8.67 | |||
| 250 | $ 7.55 | |||
| 500 | $ 7.27 | |||
| 1000 | $ 6.99 | |||
Description
General part information
SVF16 Series
16 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line)
