YB25WRKW01-1C24-JC

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

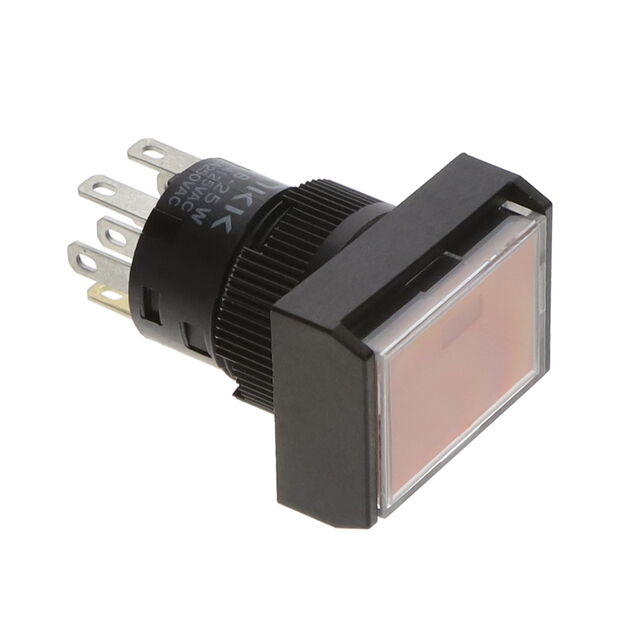

YB25WRKW01-1C24-JC

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB25WRKW01-1C24-JC

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	DPDT
Color - Actuator/Cap	Clear (Red Filter/Diffuser)
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB25WR Series

Part	Voltage Rating - DC	Switch Function	Ingress Protection	Voltage Rating - AC	Features	Electrical Life	Mounting Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Illumination Voltage (Nominal)	Actuator Marking	Color - Actuator/Cap	Illumination Type, Color	Type	Current Rating (Amps)	Mechanical Life	Panel Cutout Dimensions [diameter]	Termination Style	Termination Style	Termination Style
NKK Switches YB25WRKW01-2CF05-JB	30 V	On-Mom	IP65 - Dust Tight Water Resistant	125 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	5 VDC	No Marking	Clear	Green/Red LED	Illuminated Standard	3 A	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKG01-1D05-JB	28 V	On-Mom	IP65 - Dust Tight Water Resistant	28 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	5 VDC	No Marking	Clear	Amber LED	Illuminated Standard	0.4 VA	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKW01-1C24-JC	30 V	On-Mom	IP65 - Dust Tight Water Resistant	125 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	24 V	No Marking	Clear (Red Filter/Diffuser)	LED Red	Illuminated Standard	3 A	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKG01-1D05-JE	28 V	On-Mom	IP65 - Dust Tight Water Resistant	28 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	5 VDC	No Marking	Clear (Yellow Filter/Diffuser)	Amber LED	Illuminated Standard	0.4 VA	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKW01-5C-JC	30 V	On-Mom	IP65 - Dust Tight Water Resistant	125 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	1.9 VDC	No Marking	Clear (Red Filter/Diffuser)	LED Red	Illuminated Standard	3 A	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKW01	30 V	On-Mom	IP65 - Dust Tight Water Resistant	125 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	70 °C	-25 °C	Plunger for Cap		No Marking			Standard	3 A	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKW01-5F24-JF	30 V	On-Mom	IP65 - Dust Tight Water Resistant	125 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	24 V	No Marking	Clear	Green LED	Illuminated Standard	3 A	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKG01-1C05-JC	28 V	On-Mom	IP65 - Dust Tight Water Resistant	28 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	5 VDC	No Marking	Clear (Red Filter/Diffuser)	LED Red	Illuminated Standard	0.4 VA	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKW01-1C05-JC	30 V	On-Mom	IP65 - Dust Tight Water Resistant	125 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	5 VDC	No Marking	Clear (Red Filter/Diffuser)	LED Red	Illuminated Standard	3 A	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKW01-5F-JF	30 V	On-Mom	IP65 - Dust Tight Water Resistant	125 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	2.2 VDC	No Marking	Clear	Green LED	Illuminated Standard	3 A	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 23.29
		10	$ 20.09
Newark	Each	1	$ 39.85
		5	$ 35.54
		10	$ 34.33
		25	$ 32.43
		50	$ 30.19
		100	$ 26.74
		250	$ 23.98

Description

General part information

YB25WR Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
