YB25WRKW01

Active

NKK Switches

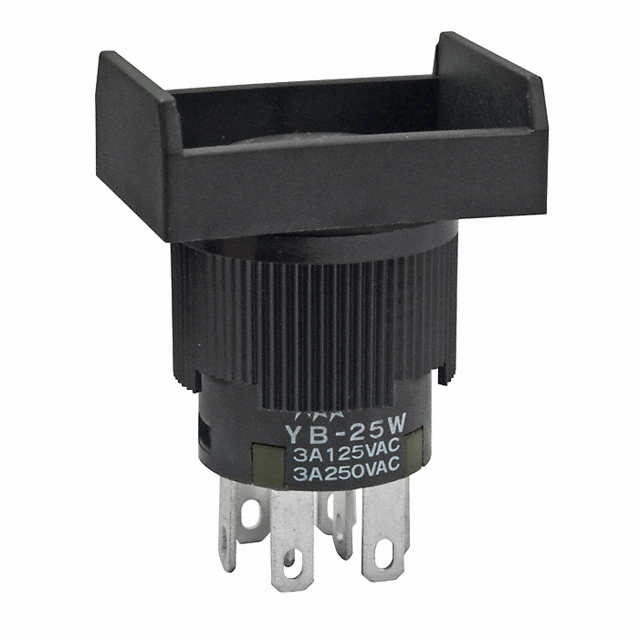

PUSHBUTTON SWITCH, YB SERIES, 16 MM, DPDT, ON-(ON), PLUNGER FOR CAP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

YB25WRKW01

Active

NKK Switches

PUSHBUTTON SWITCH, YB SERIES, 16 MM, DPDT, ON-(ON), PLUNGER FOR CAP

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB25WRKW01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB25WR Series

Part	Voltage Rating - DC	Switch Function	Ingress Protection	Voltage Rating - AC	Features	Electrical Life	Mounting Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Illumination Voltage (Nominal)	Actuator Marking	Color - Actuator/Cap	Illumination Type, Color	Type	Current Rating (Amps)	Mechanical Life	Panel Cutout Dimensions [diameter]	Termination Style	Termination Style	Termination Style
NKK Switches YB25WRKW01-2CF05-JB	30 V	On-Mom	IP65 - Dust Tight Water Resistant	125 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	5 VDC	No Marking	Clear	Green/Red LED	Illuminated Standard	3 A	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKG01-1D05-JB	28 V	On-Mom	IP65 - Dust Tight Water Resistant	28 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	5 VDC	No Marking	Clear	Amber LED	Illuminated Standard	0.4 VA	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKW01-1C24-JC	30 V	On-Mom	IP65 - Dust Tight Water Resistant	125 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	24 V	No Marking	Clear (Red Filter/Diffuser)	LED Red	Illuminated Standard	3 A	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKG01-1D05-JE	28 V	On-Mom	IP65 - Dust Tight Water Resistant	28 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	5 VDC	No Marking	Clear (Yellow Filter/Diffuser)	Amber LED	Illuminated Standard	0.4 VA	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKW01-5C-JC	30 V	On-Mom	IP65 - Dust Tight Water Resistant	125 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	1.9 VDC	No Marking	Clear (Red Filter/Diffuser)	LED Red	Illuminated Standard	3 A	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKW01	30 V	On-Mom	IP65 - Dust Tight Water Resistant	125 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	70 °C	-25 °C	Plunger for Cap		No Marking			Standard	3 A	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKW01-5F24-JF	30 V	On-Mom	IP65 - Dust Tight Water Resistant	125 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	24 V	No Marking	Clear	Green LED	Illuminated Standard	3 A	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKG01-1C05-JC	28 V	On-Mom	IP65 - Dust Tight Water Resistant	28 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	5 VDC	No Marking	Clear (Red Filter/Diffuser)	LED Red	Illuminated Standard	0.4 VA	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKW01-1C05-JC	30 V	On-Mom	IP65 - Dust Tight Water Resistant	125 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	5 VDC	No Marking	Clear (Red Filter/Diffuser)	LED Red	Illuminated Standard	3 A	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB25WRKW01-5F-JF	30 V	On-Mom	IP65 - Dust Tight Water Resistant	125 V	Voltage Reduction Lighting	100000 Cycles	Panel Mount Front	DPDT	50 °C	-25 °C	Rectangular Button	2.2 VDC	No Marking	Clear	Green LED	Illuminated Standard	3 A	1000000 Cycles	16 mm	0.11 in	Quick Connect Solder	2.8 mm
