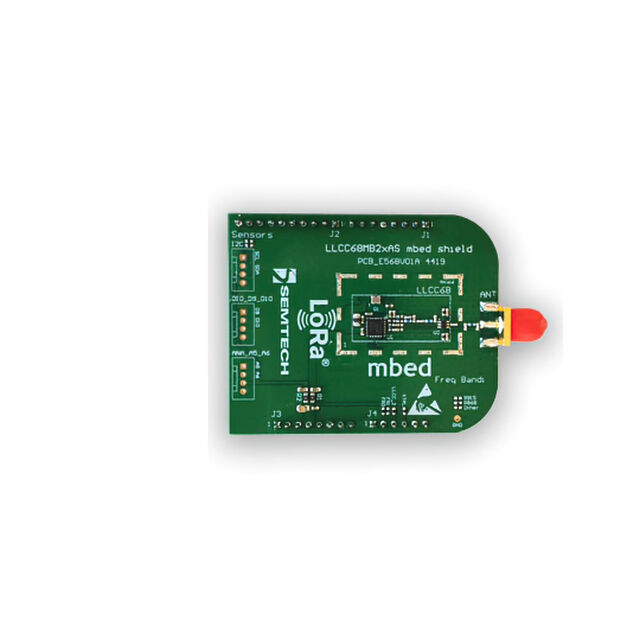

LLCC68MB2BAS

Active

Semtech Corporation

MBED SHIELD LORA LLCC68 868MHZ

Search across all available documentation for this part.

Active

Semtech Corporation

MBED SHIELD LORA LLCC68 868MHZ

Technical Specifications

Parameters and characteristics for this part

Specification	LLCC68MB2BAS

Contents	Board(s)
Function	LoRa
Interconnect System	Arduino R3 Shield
Platform	Arduino
Primary Attributes	868 MHz
Secondary Attributes	SPI Interface(s)
Suggested Programming Environment	Mbed-Enabled
Type	RF
Utilized IC / Part	LLCC68

Part	Current - Transmitting [Max]	Current - Transmitting [Min]	Type	Power - Output	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	RF Family/Standard	Mounting Type	Modulation	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Serial Interfaces	Current - Receiving [Min]	Current - Receiving [Max]	Frequency [Max]	Frequency [Min]	Data Rate (Max)	Platform	Contents	Interconnect System	Secondary Attributes	Primary Attributes	Function	Suggested Programming Environment	Utilized IC / Part
Semtech Corporation LLCC68IMLTRT	118 mA	32 mA	TxRx + MCU	22 dBm	-129 dBm	85 °C	-40 °C	24-VFQFN Exposed Pad	802.15.4	Surface Mount	FSK GFSK	LoRa™	3.7 V	1.8 V	24-QFN (4x4)	SPI	4.2 mA	10.1 mA	960 MHz	150 MHz	300 kbps
Semtech Corporation LLCC68MB2BAS			RF																			Arduino	Board(s)	Arduino R3 Shield	SPI Interface(s)	868 MHz	LoRa	Mbed-Enabled	LLCC68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LLCC68 LoRa RF Arduino Platform Evaluation Expansion Board
