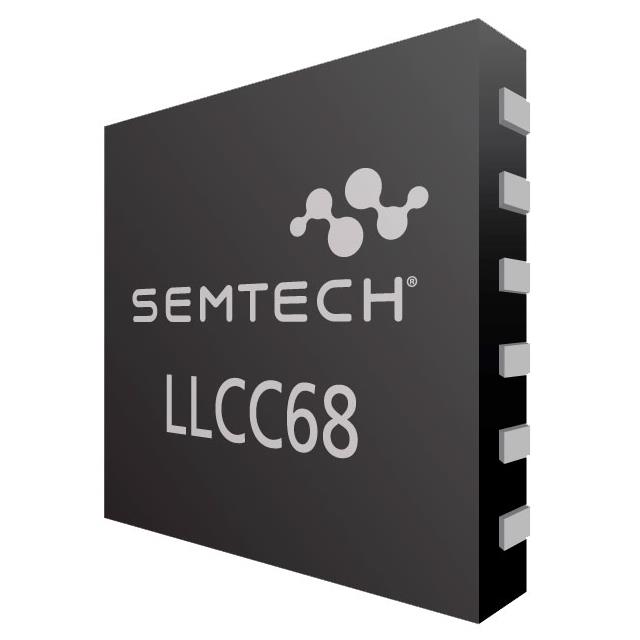

LLCC68IMLTRT

Active

Semtech Corporation

LOW POWER LONG RANGE RF TRANSCEIVER, 434 MHZ TO 915 MHZ, 24 PINS, QFN-EP

Search across all available documentation for this part.

Active

Semtech Corporation

LOW POWER LONG RANGE RF TRANSCEIVER, 434 MHZ TO 915 MHZ, 24 PINS, QFN-EP

Technical Specifications

Parameters and characteristics for this part

Part	Current - Transmitting [Max]	Current - Transmitting [Min]	Type	Power - Output	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	RF Family/Standard	Mounting Type	Modulation	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Serial Interfaces	Current - Receiving [Min]	Current - Receiving [Max]	Frequency [Max]	Frequency [Min]	Data Rate (Max)	Platform	Contents	Interconnect System	Secondary Attributes	Primary Attributes	Function	Suggested Programming Environment	Utilized IC / Part
Semtech Corporation LLCC68IMLTRT	118 mA	32 mA	TxRx + MCU	22 dBm	-129 dBm	85 °C	-40 °C	24-VFQFN Exposed Pad	802.15.4	Surface Mount	FSK GFSK	LoRa™	3.7 V	1.8 V	24-QFN (4x4)	SPI	4.2 mA	10.1 mA	960 MHz	150 MHz	300 kbps
Semtech Corporation LLCC68MB2BAS			RF																			Arduino	Board(s)	Arduino R3 Shield	SPI Interface(s)	868 MHz	LoRa	Mbed-Enabled	LLCC68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IC RF TxRx + MCU 802.15.4 LoRa™ 150MHz ~ 960MHz 24-VFQFN Exposed Pad

Technical documentation and resources

No documents available
