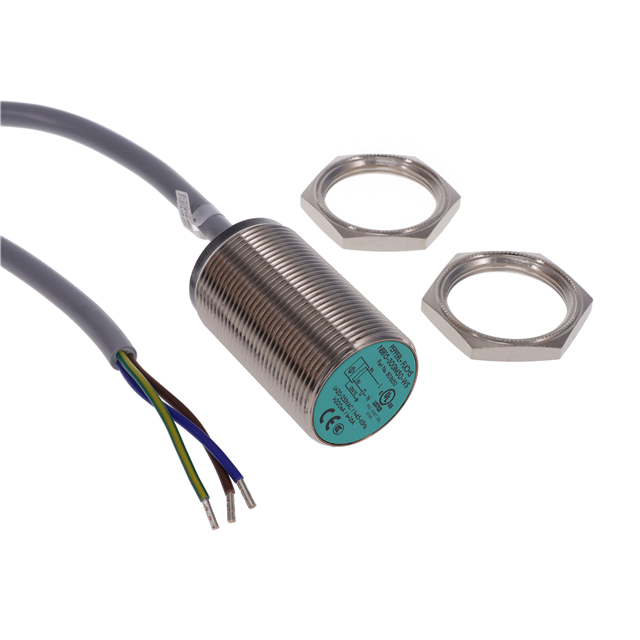

NBB15-30GM50-WS

Active

PEPPERL+FUCHS

INDUCTIVE SEN 15MM NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NBB15-30GM50-WS

Active

PEPPERL+FUCHS

INDUCTIVE SEN 15MM NO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NBB15-30GM50-WS

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	SCR-NO, 2-Wire
Package / Case	Cylinder, Threaded - M30
Sensing Distance	15 mm
Sensing Distance	0.591 "
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	253 VDC
Voltage - Supply [Min]	20 VDC

NBB15 Series

Part	Sensor Type	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Ingress Protection	Package / Case	Material - Body	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Indicator [custom]	Sensing Distance	Sensing Distance
PEPPERL+FUCHS NBB15-30GM50-WS	Inductive	Unshielded	70 °C	-25 °C	SCR-NO 2-Wire	IP67	Cylinder Threaded - M30	Nickel-Plated Brass	20 VDC	253 VDC	Cable	LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-U1-Z2	Inductive	Unshielded	85 °C	-25 °C	SCR-NC/NO 2-Wire	IP68 IP69K	Module	Polyamide (PA)	5 V	60 V		LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-30GM50-E2	Inductive	Unshielded	70 °C	-25 °C	PNP-NO 3-Wire	IP67	Cylinder Threaded - M30	Nickel-Plated Brass	10 VDC	30 VDC	Cable	LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-30GM60-A2-V1	Inductive	Unshielded	70 °C	-40 °C	4-Wire PNP-NC/NO	IP67	Cylinder Threaded - M30	Nickel-Plated Brass	10 VDC	30 VDC	Connector	LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-30GM30-E2-V1	Inductive	Unshielded	70 °C	-40 °C	PNP-NO 3-Wire	IP67	Cylinder Threaded - M30	Nickel-Plated Brass	10 VDC	30 VDC	Connector	LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-30GM50-E2-M	Inductive	Unshielded	85 °C	-40 °C	PNP-NO 3-Wire	IP68 IP69K	Cylinder Threaded - M30	Nickel-Plated Brass	5 V	60 V	Cable	LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-30GM50-US	Inductive	Unshielded	70 °C	-25 °C	SCR-NO 2-Wire	IP67	Cylinder Threaded - M30	Nickel-Plated Brass	20 VDC 20 VAC	250 VAC 300 VDC	Cable	LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-30GM50-US-V12	Inductive	Unshielded	70 °C	-25 °C	SCR-NO 2-Wire	IP67	Cylinder Threaded - M30	Nickel-Plated Brass	20 VDC 20 VAC	250 VAC 300 VDC	Connector	LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-30GM50-E2-V1	Inductive	Unshielded	70 °C	-40 °C	PNP-NO 3-Wire	IP67	Cylinder Threaded - M30	Nickel-Plated Brass	10 VDC	30 VDC	Connector	LED	15 mm	0.591 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 265.89
		5	$ 224.31
		10	$ 208.48
		25	$ 189.27
		50	$ 184.57
Newark	Each	1	$ 285.80
		5	$ 275.27
		10	$ 263.24
		25	$ 249.70
		50	$ 213.60

Description

General part information

NBB15 Series

INDUCTIVE SEN 15MM NO

Documents

Technical documentation and resources
