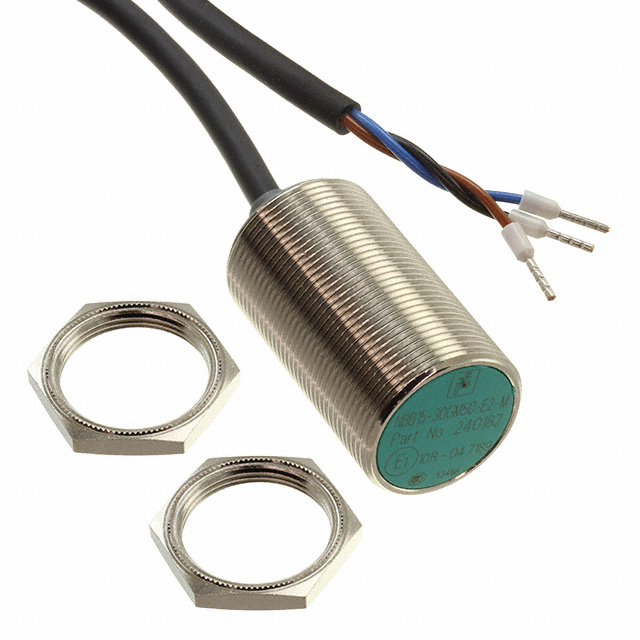

NBB15-30GM50-E2-M

Active

PEPPERL+FUCHS

INDUCTIVE SEN 15MM PNP

Deep-Dive with AI

Search across all available documentation for this part.

NBB15-30GM50-E2-M

Active

PEPPERL+FUCHS

INDUCTIVE SEN 15MM PNP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NBB15-30GM50-E2-M

Indicator [custom]	LED
Ingress Protection	IP68, IP69K
Material - Body	Nickel-Plated Brass
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M30
Sensing Distance	15 mm
Sensing Distance	0.591 "
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	60 V
Voltage - Supply [Min]	5 V

NBB15 Series

Part	Sensor Type	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Ingress Protection	Package / Case	Material - Body	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Indicator [custom]	Sensing Distance	Sensing Distance
PEPPERL+FUCHS NBB15-30GM50-WS	Inductive	Unshielded	70 °C	-25 °C	SCR-NO 2-Wire	IP67	Cylinder Threaded - M30	Nickel-Plated Brass	20 VDC	253 VDC	Cable	LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-U1-Z2	Inductive	Unshielded	85 °C	-25 °C	SCR-NC/NO 2-Wire	IP68 IP69K	Module	Polyamide (PA)	5 V	60 V		LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-30GM50-E2	Inductive	Unshielded	70 °C	-25 °C	PNP-NO 3-Wire	IP67	Cylinder Threaded - M30	Nickel-Plated Brass	10 VDC	30 VDC	Cable	LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-30GM60-A2-V1	Inductive	Unshielded	70 °C	-40 °C	4-Wire PNP-NC/NO	IP67	Cylinder Threaded - M30	Nickel-Plated Brass	10 VDC	30 VDC	Connector	LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-30GM30-E2-V1	Inductive	Unshielded	70 °C	-40 °C	PNP-NO 3-Wire	IP67	Cylinder Threaded - M30	Nickel-Plated Brass	10 VDC	30 VDC	Connector	LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-30GM50-E2-M	Inductive	Unshielded	85 °C	-40 °C	PNP-NO 3-Wire	IP68 IP69K	Cylinder Threaded - M30	Nickel-Plated Brass	5 V	60 V	Cable	LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-30GM50-US	Inductive	Unshielded	70 °C	-25 °C	SCR-NO 2-Wire	IP67	Cylinder Threaded - M30	Nickel-Plated Brass	20 VDC 20 VAC	250 VAC 300 VDC	Cable	LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-30GM50-US-V12	Inductive	Unshielded	70 °C	-25 °C	SCR-NO 2-Wire	IP67	Cylinder Threaded - M30	Nickel-Plated Brass	20 VDC 20 VAC	250 VAC 300 VDC	Connector	LED	15 mm	0.591 "
PEPPERL+FUCHS NBB15-30GM50-E2-V1	Inductive	Unshielded	70 °C	-40 °C	PNP-NO 3-Wire	IP67	Cylinder Threaded - M30	Nickel-Plated Brass	10 VDC	30 VDC	Connector	LED	15 mm	0.591 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 181.34
		5	$ 152.97
		10	$ 142.18
		25	$ 129.07
		50	$ 119.97
Newark	Each	1	$ 191.67
		10	$ 178.04
		25	$ 166.37
		50	$ 160.53
		100	$ 154.70

Description

General part information

NBB15 Series

INDUCTIVE SEN 15MM PNP

Documents

Technical documentation and resources

No documents available
