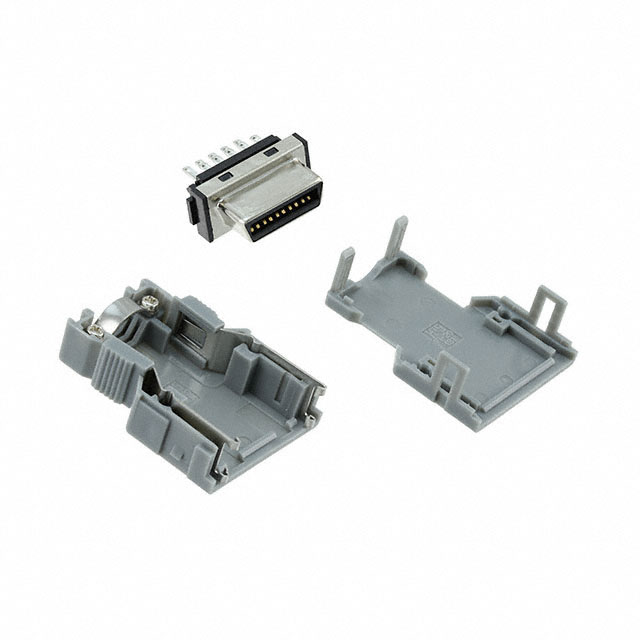

FI40B-20S-CV5(50)

Active

Hirose Electric USA, Inc.

CONN VHDCI RCPT 20P STR SLD EYEL

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN VHDCI RCPT 20P STR SLD EYEL

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Style	Number of Rows	Connector Type	Termination	Features	Type	Cable Exit	Cable Type	Color	Material	Accessory Type	Primary Material	Shielding
Hirose Electric USA, Inc. FI40-20S(50)	20	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold	Outer Shroud Contacts	2	Receptacle	Solder Eyelet(s)
Hirose Electric USA, Inc. FI40B-20S-CVS5(20)	20	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold	Outer Shroud Contacts	2	Receptacle	Solder Eyelet(s)	Backshell
Hirose Electric USA, Inc. FI40B-20S(50)	20	Through Hole			Gold	Outer Shroud Contacts	2	Receptacle	Solder
Hirose Electric USA, Inc. FI40-20S-CVS2(20)
Hirose Electric USA, Inc. FI40B-20S-CV5(50)	20	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold	Outer Shroud Contacts	2	Receptacle	Solder Eyelet(s)	Backshell	VHDCI
Hirose Electric USA, Inc. FI40B-20S-CVS5(50)	20	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold	Outer Shroud Contacts	2	Receptacle	Solder Eyelet(s)	Backshell
Hirose Electric USA, Inc. FI40B-2015S(50)	15	Free Hanging (In-Line)			Gold	Outer Shroud Contacts	2	Receptacle	Solder Eyelet(s)
Hirose Electric USA, Inc. FI40B-2015S-CV(60)	20	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold	Outer Shroud Contacts	2	Receptacle	Solder Eyelet(s)	Backshell
Hirose Electric USA, Inc. FI40B-20S-CVS2	20	Free Hanging (In-Line) Right Angle			Gold	Outer Shroud Contacts	2	Plug	Solder	Backshell
Hirose Electric USA, Inc. FI40B-2015S-CVS(50)	15									Locking		90 °	Round	Gray	Polycarbonate (PC)	Two Piece Backshell	Plastic	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Receptacle Connector VHDCI Free Hanging (In-Line) Solder Eyelet(s)
