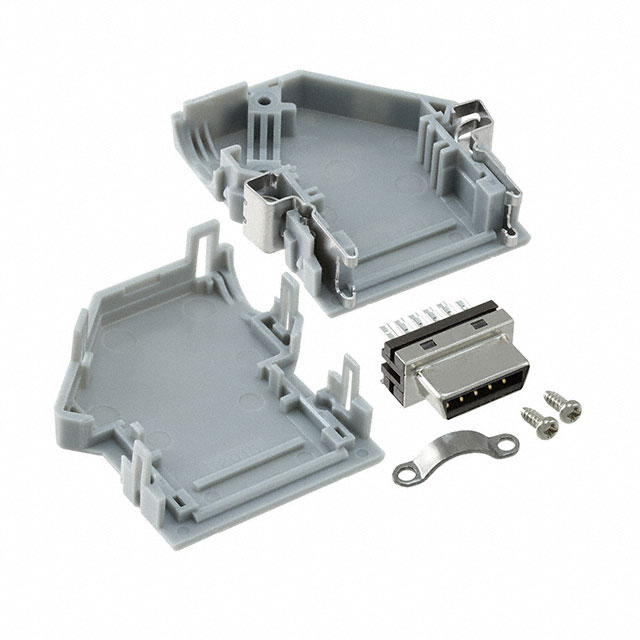

FI40B-2015S-CVS(50)

Active

Hirose Electric USA, Inc.

HALF PITCH INTERFACE CONNECTORS; HRS NO: 230-0533-0 50; NO. OF POSITIONS: 15; CONNECTOR TYPE: CABLE; CONTACT GENDER: FEMALE; CONTACT SPACING (MM): 1.27; TERMINAL PITCH (MM): 2.54; TERMINATION STYLE: SOLDERING; CURRENT RATING(AMPS)(MAX.): 1; RATED VOLTAGE(VAC): 250; MATING/UNMATING CYCLES: 500; CONTACT MATING AREA PLATING: GOLD; OPERATING TEMPERATURE RANGE (DEGREES C): -55 TO 85; GENERAL DESCRIPTION: PLUG WITH ONE-TOUCH LOCK 90 DEGREES CABLE EXIT COVER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFI Series Datasheet

FI40B-2015S-CVS(50)

Active

Hirose Electric USA, Inc.

Deep-Dive with AI

DocumentsFI Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FI40B-2015S-CVS(50)

Accessory Type	Two Piece Backshell
Cable Exit	90 °
Cable Type	Round
Color	Gray
Features	Locking
Material	Polycarbonate (PC)
Number of Positions	15
Primary Material	Plastic
Shielding	Unshielded

FI40 Series

Part	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Style	Number of Rows	Connector Type	Termination	Features	Type	Cable Exit	Cable Type	Color	Material	Accessory Type	Primary Material	Shielding
Hirose Electric USA, Inc. FI40-20S(50)	20	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold	Outer Shroud Contacts	2	Receptacle	Solder Eyelet(s)
Hirose Electric USA, Inc. FI40B-20S-CVS5(20)	20	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold	Outer Shroud Contacts	2	Receptacle	Solder Eyelet(s)	Backshell
Hirose Electric USA, Inc. FI40B-20S(50)	20	Through Hole			Gold	Outer Shroud Contacts	2	Receptacle	Solder
Hirose Electric USA, Inc. FI40-20S-CVS2(20)
Hirose Electric USA, Inc. FI40B-20S-CV5(50)	20	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold	Outer Shroud Contacts	2	Receptacle	Solder Eyelet(s)	Backshell	VHDCI
Hirose Electric USA, Inc. FI40B-20S-CVS5(50)	20	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold	Outer Shroud Contacts	2	Receptacle	Solder Eyelet(s)	Backshell
Hirose Electric USA, Inc. FI40B-2015S(50)	15	Free Hanging (In-Line)			Gold	Outer Shroud Contacts	2	Receptacle	Solder Eyelet(s)
Hirose Electric USA, Inc. FI40B-2015S-CV(60)	20	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold	Outer Shroud Contacts	2	Receptacle	Solder Eyelet(s)	Backshell
Hirose Electric USA, Inc. FI40B-20S-CVS2	20	Free Hanging (In-Line) Right Angle			Gold	Outer Shroud Contacts	2	Plug	Solder	Backshell
Hirose Electric USA, Inc. FI40B-2015S-CVS(50)	15									Locking		90 °	Round	Gray	Polycarbonate (PC)	Two Piece Backshell	Plastic	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.58
		10	$ 10.26
		25	$ 9.87
		50	$ 9.47
		100	$ 8.95
		250	$ 8.16
		450	$ 7.63
		950	$ 7.00

Description

General part information

FI40 Series

15 Position Two Piece Backshell Connector Gray 90° Unshielded

Documents

Technical documentation and resources

FI Series Datasheet

Datasheet
