180-015-103L031
ActiveMH Connectors

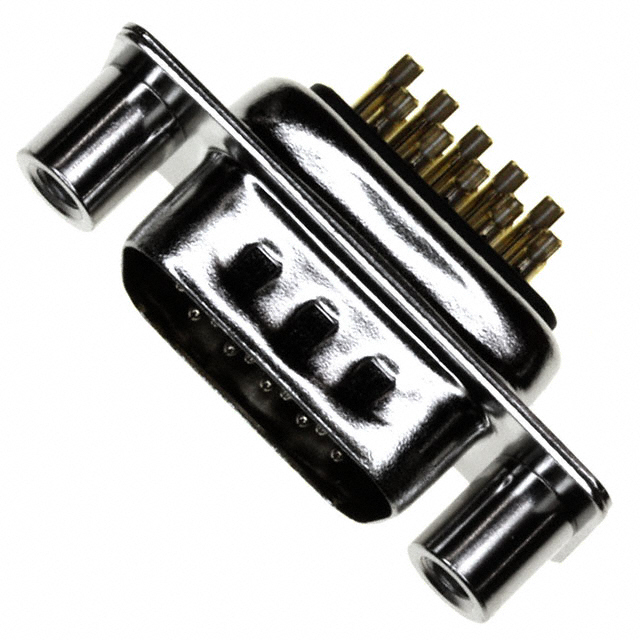

HD D SUB CONN, PLUG, 15POS, DE, SLDR CUP ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
180-015-103L031
ActiveMH Connectors
HD D SUB CONN, PLUG, 15POS, DE, SLDR CUP ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 180-015-103L031 |
|---|---|
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents, Shielded |
| Flange Feature | 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
180-015 Series
| Part | Number of Rows | Material Flammability Rating | Shell Material, Finish | Contact Finish | Connector Style | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Material | Dielectric Material | Features | Connector Type | Contact Type | Number of Positions | Current Rating (Amps) | Flange Feature | Color | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | 3 | UL94 V-0 | Steel Yellow Chromate Plated | Gold | D-Sub High Density | Flash | DE E | 1 | High Density | Brass | Polybutylene Terephthalate (PBT) | Shielded | Male Pins Plug | Signal | 15 | 5 A | Cable Side | |||
MH Connectors | 3 | UL94 V-0 | Steel Yellow Chromate Plated | Gold | D-Sub High Density | Flash | DE E | 1 | High Density | Brass | Polybutylene Terephthalate (PBT) | Shielded | Receptacle Female Sockets | Signal | 15 | 5 A | Cable Side | |||
MH Connectors | 3 | UL94 V-0 | Nickel Plated Steel | Gold | D-Sub High Density | Flash | DE E | 1 | High Density | Brass | Polybutylene Terephthalate (PBT) | Grounding Indents Shielded | Male Pins Plug | Signal | 15 | 5 A | 4-40 | |||
MH Connectors | 3 | UL94 V-0 | Nickel Plated Steel | Gold | D-Sub High Density | Flash | DE E | 1 | High Density | Brass | Polybutylene Terephthalate (PBT) | Shielded | Receptacle Female Sockets | Signal | 15 | 5 A | Cable Side | |||
MH Connectors | 3 | UL94 V-0 | Gold | D-Sub High Density | Flash | DE E | 1 | High Density | Brass | Polybutylene Terephthalate (PBT) | Grounding Indents Shielded | Male Pins Plug | Signal | 15 | 5 A | Housing/Shell (Unthreaded) | ||||
MH Connectors | 3 | UL94 V-0 | Gold | D-Sub High Density | Flash | DE E | 1 | High Density | Brass | Polybutylene Terephthalate (PBT) | Grounding Indents Shielded | Male Pins Plug | Signal | 15 | 5 A | Cable Side | ||||
MH Connectors | 3 | UL94 V-0 | Steel Yellow Chromate Plated | Gold | D-Sub High Density | Flash | DE E | 1 | High Density | Brass | Polybutylene Terephthalate (PBT) | Shielded | Receptacle Female Sockets | Signal | 15 | 5 A | Housing/Shell (Unthreaded) | |||
MH Connectors | 3 | UL94 V-0 | Gold | D-Sub High Density | Flash | DE E | 1 | High Density | Polybutylene Terephthalate (PBT) | Receptacle Female Sockets | Signal | 15 | 2 A | Cable Side | Black | |||||
MH Connectors | 3 | UL94 V-0 | Gold | D-Sub High Density | Flash | DE E | 1 | High Density | Polyester Glass Filled | Grounding Indents | Male Pins Plug | Signal | 15 | 2 A | Housing/Shell (Unthreaded) | Black | Solder | Panel Mount Through Hole | ||
MH Connectors | 3 | UL94 V-0 | Nickel Plated Steel | Gold | D-Sub High Density | Flash | DE E | 1 | High Density | Brass | Polybutylene Terephthalate (PBT) | Shielded | Receptacle Female Sockets | Signal | 15 | 5 A | Cable Side |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
180-015 Series
15 Position D-Sub, High Density Plug, Male Pins Connector
