180-015-202-021

Obsolete

MH Connectors

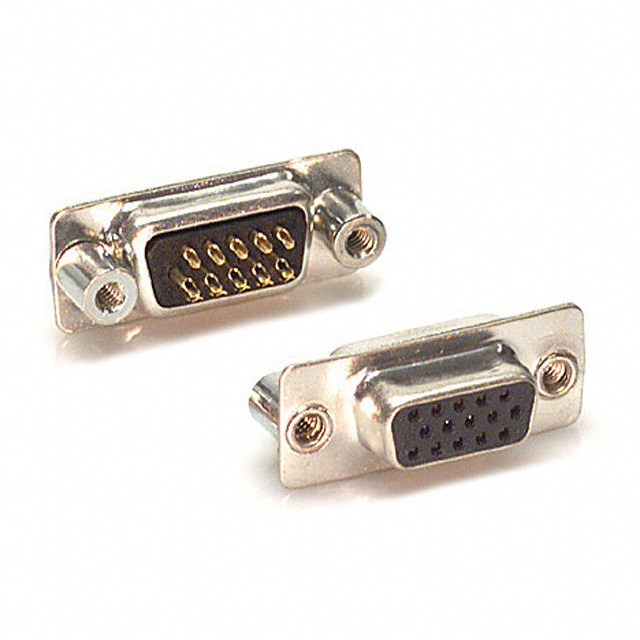

CONN D-SUB HD RCPT 15POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

180-015-202-021

Obsolete

MH Connectors

CONN D-SUB HD RCPT 15POS PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	180-015-202-021

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Number of Positions	15
Number of Rows	3
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density

180-015 Series

Part	Number of Rows	Material Flammability Rating	Shell Material, Finish	Contact Finish	Connector Style	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Dielectric Material	Features	Connector Type	Contact Type	Number of Positions	Current Rating (Amps)	Flange Feature	Color	Termination	Mounting Type
MH Connectors 180-015-101L021	3	UL94 V-0	Steel Yellow Chromate Plated	Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Shielded	Male Pins Plug	Signal	15	5 A	Cable Side
MH Connectors 180-015-201L021	3	UL94 V-0	Steel Yellow Chromate Plated	Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Shielded	Receptacle Female Sockets	Signal	15	5 A	Cable Side
MH Connectors 180-015-103L031	3	UL94 V-0	Nickel Plated Steel	Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Grounding Indents Shielded	Male Pins Plug	Signal	15	5 A	4-40
MH Connectors 180-015-203L011	3	UL94 V-0	Nickel Plated Steel	Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Shielded	Receptacle Female Sockets	Signal	15	5 A	Cable Side
MH Connectors 180-015-102L001	3	UL94 V-0		Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Grounding Indents Shielded	Male Pins Plug	Signal	15	5 A	Housing/Shell (Unthreaded)
MH Connectors 180-015-102L021	3	UL94 V-0		Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Grounding Indents Shielded	Male Pins Plug	Signal	15	5 A	Cable Side
MH Connectors 180-015-201L001	3	UL94 V-0	Steel Yellow Chromate Plated	Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Shielded	Receptacle Female Sockets	Signal	15	5 A	Housing/Shell (Unthreaded)
MH Connectors 180-015-202-021	3	UL94 V-0		Gold	D-Sub High Density	Flash	DE E	1	High Density		Polybutylene Terephthalate (PBT)		Receptacle Female Sockets	Signal	15	2 A	Cable Side	Black
MH Connectors 180-015-112-001	3	UL94 V-0		Gold	D-Sub High Density	Flash	DE E	1	High Density		Polyester Glass Filled	Grounding Indents	Male Pins Plug	Signal	15	2 A	Housing/Shell (Unthreaded)	Black	Solder	Panel Mount Through Hole
MH Connectors 180-015-203L021	3	UL94 V-0	Nickel Plated Steel	Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Shielded	Receptacle Female Sockets	Signal	15	5 A	Cable Side

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

180-015 Series

15 Position D-Sub, High Density Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

No documents available
