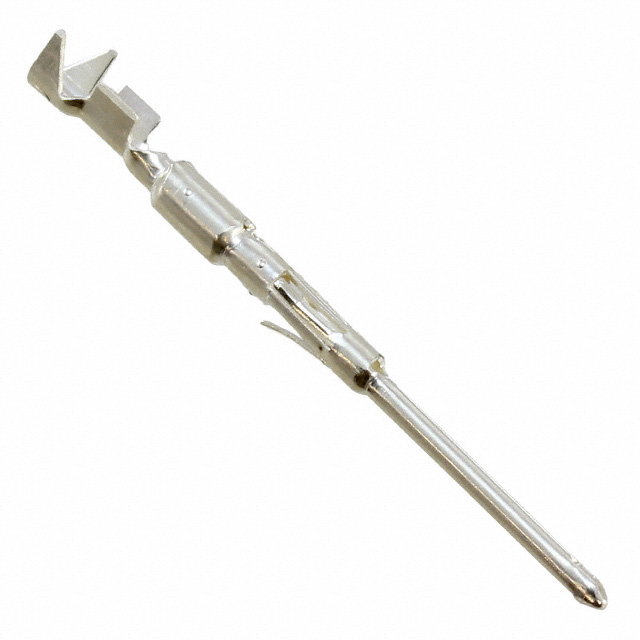

ST-JL05-20P-C2-100

Active

JAE Electronics

CONTACT PIN 22-26AWG CRIMP SLVR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJL05xA Spec Sheet Datasheet

ST-JL05-20P-C2-100

Active

JAE Electronics

CONTACT PIN 22-26AWG CRIMP SLVR

Deep-Dive with AI

DocumentsJL05xA Spec Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ST-JL05-20P-C2-100

Contact Finish	Silver
Contact Material	Copper Alloy
Contact Size	20
Contact Termination	Crimp
Contact Type	Pin
Features	Insulation Support
Termination Finish	Copper Alloy
Type	Stamped, Signal
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	22 AWG
Wire Gauge or Range - mm˛ [Max]	0.3 mm˛
Wire Gauge or Range - mm˛ [Min]	0.13 mm˛

ST-JL05 Series

Part	Termination Finish	Contact Size	Type	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Contact Type	Features	Contact Material	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Finish	Contact Termination
JAE Electronics ST-JL05-20P-C2-10000	Copper Alloy	20	Signal Stamped	0.3 mm˛	0.13 mm˛	Pin	Insulation Support	Copper Alloy	22 AWG	26 AWG	Silver	Crimp
JAE Electronics ST-JL05-16S-C1-3500	Copper Alloy	16	Signal Stamped			Socket	Insulation Support	Copper Alloy	14 AWG	16 AWG	Silver	Crimp
JAE Electronics ST-JL05-16P-C2-3500	Copper Alloy	16	Signal Stamped	1.25 mm˛	0.5 mm˛	Pin	Insulation Support	Copper Alloy	16 AWG	20 AWG	Silver	Crimp
JAE Electronics ST-JL05-20P-C1-100-(A534G)	Copper Alloy	20	Signal Stamped	0.8 mm˛	0.3 mm˛	Pin	Insulation Support	Copper Alloy	18 AWG	22 AWG	Gold	Crimp
JAE Electronics ST-JL05-20P-C1-100	Copper Alloy	20	Signal Stamped	0.8 mm˛	0.3 mm˛	Pin	Insulation Support	Copper Alloy	18 AWG	22 AWG	Silver	Crimp
JAE Electronics ST-JL05-16S-C1-100	Copper Alloy	16	Signal Stamped			Socket	Insulation Support	Copper Alloy	14 AWG	16 AWG	Silver	Crimp
JAE Electronics ST-JL05-16P-C1-3500	Copper Alloy	16	Signal Stamped			Pin	Insulation Support	Copper Alloy	14 AWG	16 AWG	Silver	Crimp
JAE Electronics ST-JL05-16S-C3-3500	Copper Alloy	16	Signal Stamped	0.5 mm˛	0.2 mm˛	Socket	Insulation Support	Copper Alloy	20 AWG	24 AWG	Silver	Crimp
JAE Electronics ST-JL05-20P-C2-100	Copper Alloy	20	Signal Stamped	0.3 mm˛	0.13 mm˛	Pin	Insulation Support	Copper Alloy	22 AWG	26 AWG	Silver	Crimp
JAE Electronics ST-JL05-16P-C3-100	Copper Alloy	16	Signal Stamped	0.5 mm˛	0.2 mm˛	Pin	Insulation Support	Copper Alloy	20 AWG	24 AWG	Silver	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.76
		10	$ 0.67
		25	$ 0.61
		50	$ 0.57
		100	$ 0.55
		250	$ 0.50
		500	$ 0.48
		1000	$ 0.39
		2500	$ 0.36
LCSC	Piece	1	$ 0.42
		200	$ 0.17
		500	$ 0.16
		1000	$ 0.16

Description

General part information

ST-JL05 Series

Pin Contact 22-26 AWG Size 20 Crimp Silver
