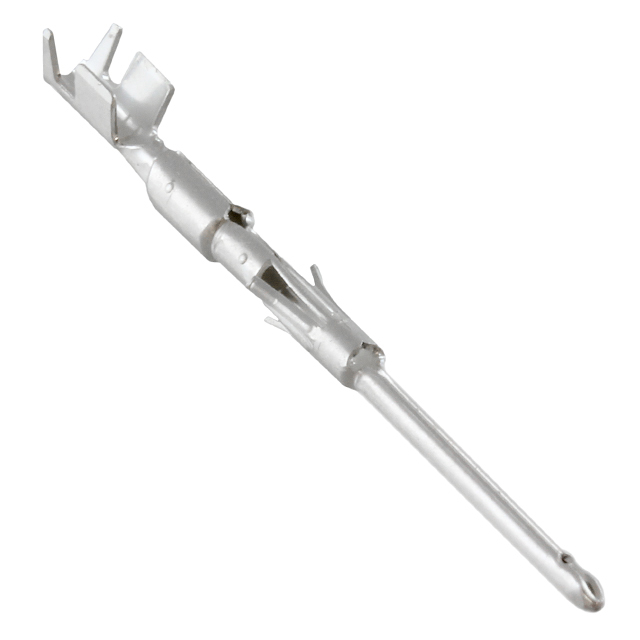

ST-JL05-20P-C1-100
ActiveJAE Electronics
CONTACT PIN 18-22AWG CRIMP SLVR
Deep-Dive with AI
Search across all available documentation for this part.
ST-JL05-20P-C1-100
ActiveJAE Electronics
CONTACT PIN 18-22AWG CRIMP SLVR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ST-JL05-20P-C1-100 |
|---|---|
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Contact Size | 20 |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Features | Insulation Support |
| Termination Finish | Copper Alloy |
| Type | Stamped, Signal |
| Wire Gauge or Range - AWG [Max] | 22 AWG |
| Wire Gauge or Range - AWG [Min] | 18 AWG |
| Wire Gauge or Range - mm˛ [Max] | 0.8 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 0.3 mm˛ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.57 | |
| 10 | $ 0.48 | |||
| 25 | $ 0.46 | |||
| 50 | $ 0.45 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.34 | |||
Description
General part information
ST-JL05 Series
Pin Contact 18-22 AWG Size 20 Crimp Silver
