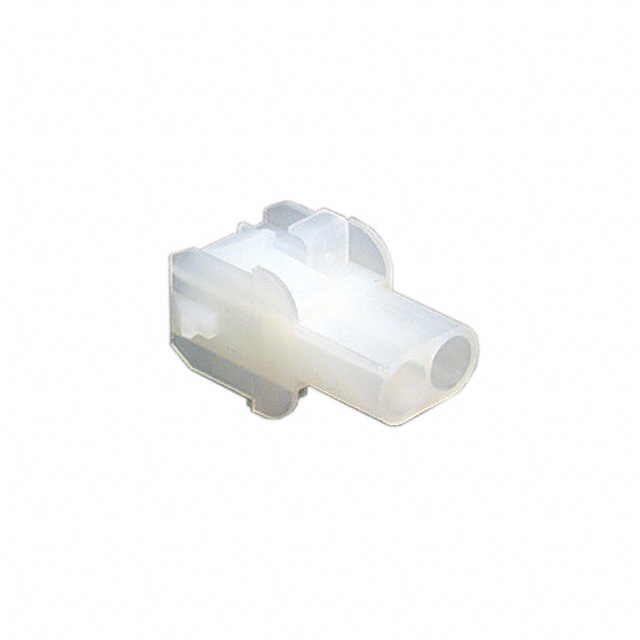

0050842020

Active

Molex

CONN HOUSING F 2 POS CRIMP ST CABLE MOUNT NATURAL MLX™ CARTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0050842020

Active

Molex

CONN HOUSING F 2 POS CRIMP ST CABLE MOUNT NATURAL MLX™ CARTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0050842020

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male or Female
Fastening Type	Locking Ramp
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C

005084 Series

Part	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Type	Color	Number of Rows	Note	Contact Termination	Row Spacing	Row Spacing	Fastening Type	Connector Type	Mounting Type
Molex 0050841155	15	105 ░C	-55 °C	Polyamide (PA66) Nylon 6/6	Male or Female	Natural	3	Contacts Not Included	Crimp	6.35 mm	0.25 in	Latch Lock	Plug	Free Hanging (In-Line)
Molex 0050841040	4	105 ░C	-55 °C	Polyamide (PA66) Nylon 6/6	Male or Female	Natural	1	Contacts Not Included	Crimp			Latch Lock	Plug	Free Hanging (In-Line)
Molex 0050842040	4	105 ░C	-55 °C	Polyamide (PA66) Nylon 6/6	Male or Female	Natural	1	Contacts Not Included	Crimp			Locking Ramp	Receptacle	Free Hanging (In-Line)
Molex 0050842032		105 ░C	-55 °C	Polyamide (PA66) Nylon 6/6	Male or Female	Natural	1	Contacts Not Included	Crimp			Locking Ramp	Receptacle
Molex 0050842022	2	105 ░C	-55 °C	Polyamide (PA66) Nylon 6/6	Male or Female	Natural	1	Contacts Not Included	Crimp			Locking Ramp	Receptacle
Molex 0050842020	2	105 ░C	-55 °C	Polyamide (PA66) Nylon 6/6	Male or Female	Natural	1	Contacts Not Included	Crimp			Locking Ramp	Receptacle	Free Hanging (In-Line)
Molex 0050842060	6	105 ░C	-55 °C	Polyamide (PA66) Nylon 6/6	Male or Female	Natural	2	Contacts Not Included	Crimp	6.35 mm	0.25 in	Locking Ramp	Receptacle	Free Hanging (In-Line)
Molex 0050842150	15	105 ░C	-55 °C	Polyamide (PA66) Nylon 6/6	Male or Female	Natural	3	Contacts Not Included	Crimp	6.35 mm	0.25 in	Locking Ramp	Receptacle
Molex 0050841020	2	105 ░C	-55 °C	Polyamide (PA66) Nylon 6/6	Male or Female	Natural	1	Contacts Not Included	Crimp			Latch Lock	Plug	Free Hanging (In-Line)
Molex 0050842062	6	105 ░C	-55 °C	Polyamide (PA66) Nylon 6/6	Male or Female	Natural	2	Contacts Not Included	Crimp	6.35 mm	0.25 in	Locking Ramp	Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.41
		10	$ 0.34
		25	$ 0.32
		50	$ 0.30
		100	$ 0.28
		250	$ 0.26
		500	$ 0.25
Digikey	Bulk	1	$ 0.40
		10	$ 0.34
		100	$ 0.26
		2000	$ 0.22

Description

General part information

005084 Series

2 Rectangular Connectors - Housings Receptacle Natural
