0050842150
ActiveMolex

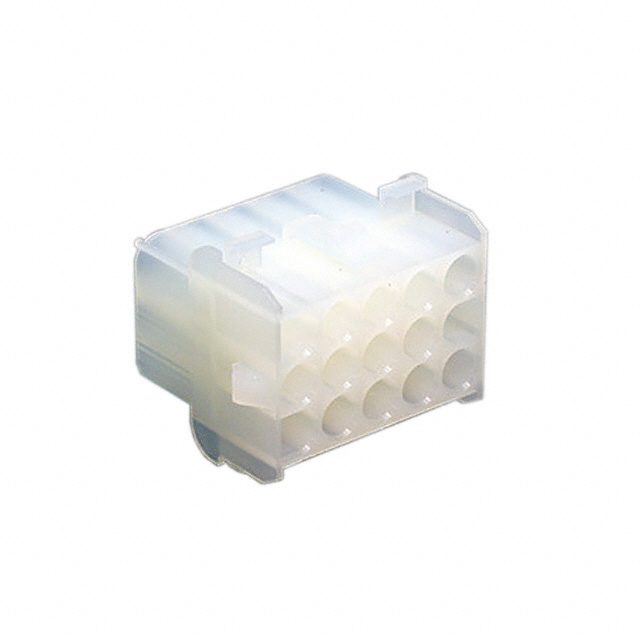

CONN RCPT HSG 15POS .084
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0050842150
ActiveMolex
CONN RCPT HSG 15POS .084
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0050842150 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male or Female |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Row Spacing | 6.35 mm |
| Row Spacing | 0.25 in |
005084 Series
| Part | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Contact Type | Color | Number of Rows | Note | Contact Termination | Row Spacing | Row Spacing | Fastening Type | Connector Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 15 | 105 ░C | -55 °C | Polyamide (PA66) Nylon 6/6 | Male or Female | Natural | 3 | Contacts Not Included | Crimp | 6.35 mm | 0.25 in | Latch Lock | Plug | Free Hanging (In-Line) |
Molex | 4 | 105 ░C | -55 °C | Polyamide (PA66) Nylon 6/6 | Male or Female | Natural | 1 | Contacts Not Included | Crimp | Latch Lock | Plug | Free Hanging (In-Line) | ||
Molex | 4 | 105 ░C | -55 °C | Polyamide (PA66) Nylon 6/6 | Male or Female | Natural | 1 | Contacts Not Included | Crimp | Locking Ramp | Receptacle | Free Hanging (In-Line) | ||
Molex | 105 ░C | -55 °C | Polyamide (PA66) Nylon 6/6 | Male or Female | Natural | 1 | Contacts Not Included | Crimp | Locking Ramp | Receptacle | ||||
Molex | 2 | 105 ░C | -55 °C | Polyamide (PA66) Nylon 6/6 | Male or Female | Natural | 1 | Contacts Not Included | Crimp | Locking Ramp | Receptacle | |||
Molex | 2 | 105 ░C | -55 °C | Polyamide (PA66) Nylon 6/6 | Male or Female | Natural | 1 | Contacts Not Included | Crimp | Locking Ramp | Receptacle | Free Hanging (In-Line) | ||
Molex | 6 | 105 ░C | -55 °C | Polyamide (PA66) Nylon 6/6 | Male or Female | Natural | 2 | Contacts Not Included | Crimp | 6.35 mm | 0.25 in | Locking Ramp | Receptacle | Free Hanging (In-Line) |
Molex | 15 | 105 ░C | -55 °C | Polyamide (PA66) Nylon 6/6 | Male or Female | Natural | 3 | Contacts Not Included | Crimp | 6.35 mm | 0.25 in | Locking Ramp | Receptacle | |
Molex | 2 | 105 ░C | -55 °C | Polyamide (PA66) Nylon 6/6 | Male or Female | Natural | 1 | Contacts Not Included | Crimp | Latch Lock | Plug | Free Hanging (In-Line) | ||
Molex | 6 | 105 ░C | -55 °C | Polyamide (PA66) Nylon 6/6 | Male or Female | Natural | 2 | Contacts Not Included | Crimp | 6.35 mm | 0.25 in | Locking Ramp | Receptacle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.34 | |
| 10 | $ 1.15 | |||
| 100 | $ 0.95 | |||
| 1200 | $ 0.88 | |||
Description
General part information
005084 Series
15 Rectangular Connectors - Housings Receptacle Natural
