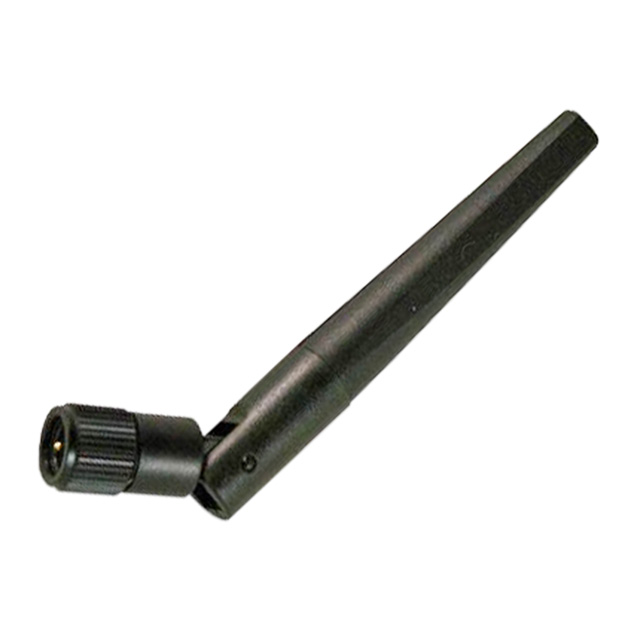

PRO-EX-332

Active

Abracon LLC

RF ANT 2.4GHZ WHIP TILT SMA MALE

Search across all available documentation for this part.

Active

Abracon LLC

RF ANT 2.4GHZ WHIP TILT SMA MALE

Technical Specifications

Parameters and characteristics for this part

Part	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Frequency (Center/Band)	Applications	Number of Bands	VSWR	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Height (Max) [Max]	Mounting Type	Gain	Height (Max) [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Return Loss	RF Family/Standard	Termination
Abracon LLC PRO-EX-285	Tilt Whip	2.48 GHz 5.85 GHz	2.4 GHz 5.15 GHz	2.4 GHz 5.5 GHz	ISM WLAN	2	2	4 GHz	2 GHz	3 GHz	4.213 in 107 mm	Connector Mount	3 dBi
Abracon LLC PRO-EX-347	Whip Straight	2.48 GHz	2.4 GHz			1	3				1.102 in	Connector Mount	3 dBi	28 mm
Abracon LLC PRO-EX-332	Tilt Whip	2.48 GHz	2.4 GHz			1	2				3.268 "in"	Connector Mount	3 dBi	83 mm
Abracon LLC PRO-EX-388		1.99 GHz 2.17 GHz 960 MHz	1.71 GHz 2.11 GHz 824 MHz	1.85 GHz 2.1 GHz 892 MHz	GSM UMTS	6						Connector Mount			57.3 mm	2.256 "	-3 dB	Cellular
Abracon LLC PRO-EX-333	Tilt Whip	2.48 GHz	2.4 GHz			1	2				3.268 "in"	Connector Mount	3 dBi	83 mm					RP-SMA Male
Abracon LLC PRO-EX-286	Tilt Whip	2.485 GHz 5.85 GHz	2.4 GHz 5.15 GHz	2.4 GHz 5.5 GHz	WLAN	2	2	4 GHz	2 GHz	3 GHz	4.213 in 107 mm	Connector Mount	3 dBi					WiFi	RP-SMA Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.4GHz Whip, Tilt RF Antenna 2.4GHz ~ 2.48GHz 3dBi SMA Male Connector Mount

Technical documentation and resources

No documents available
