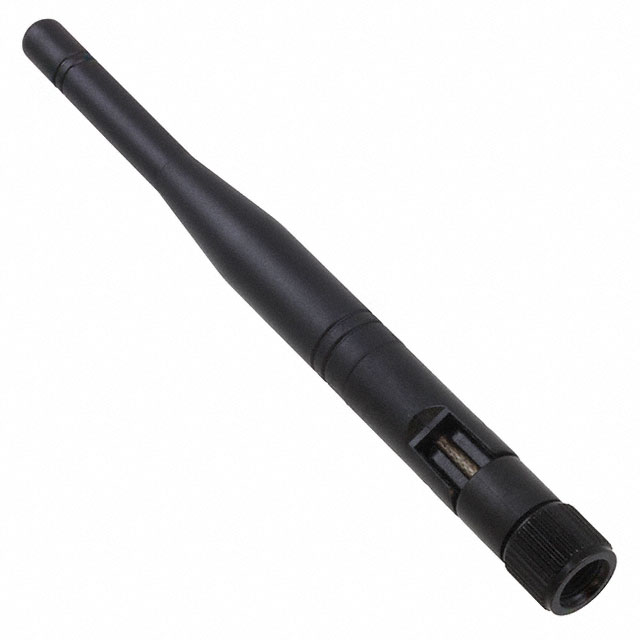

PRO-EX-286

Active

Abracon LLC

RF ANT 2.4GHZ/5.5GHZ WHIP TILT

Search across all available documentation for this part.

Active

Abracon LLC

RF ANT 2.4GHZ/5.5GHZ WHIP TILT

Technical Specifications

Parameters and characteristics for this part

Part	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Frequency (Center/Band)	Applications	Number of Bands	VSWR	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Height (Max) [Max]	Mounting Type	Gain	Height (Max) [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Return Loss	RF Family/Standard	Termination
Abracon LLC PRO-EX-285	Tilt Whip	2.48 GHz 5.85 GHz	2.4 GHz 5.15 GHz	2.4 GHz 5.5 GHz	ISM WLAN	2	2	4 GHz	2 GHz	3 GHz	4.213 in 107 mm	Connector Mount	3 dBi
Abracon LLC PRO-EX-347	Whip Straight	2.48 GHz	2.4 GHz			1	3				1.102 in	Connector Mount	3 dBi	28 mm
Abracon LLC PRO-EX-332	Tilt Whip	2.48 GHz	2.4 GHz			1	2				3.268 "in"	Connector Mount	3 dBi	83 mm
Abracon LLC PRO-EX-388		1.99 GHz 2.17 GHz 960 MHz	1.71 GHz 2.11 GHz 824 MHz	1.85 GHz 2.1 GHz 892 MHz	GSM UMTS	6						Connector Mount			57.3 mm	2.256 "	-3 dB	Cellular
Abracon LLC PRO-EX-333	Tilt Whip	2.48 GHz	2.4 GHz			1	2				3.268 "in"	Connector Mount	3 dBi	83 mm					RP-SMA Male
Abracon LLC PRO-EX-286	Tilt Whip	2.485 GHz 5.85 GHz	2.4 GHz 5.15 GHz	2.4 GHz 5.5 GHz	WLAN	2	2	4 GHz	2 GHz	3 GHz	4.213 in 107 mm	Connector Mount	3 dBi					WiFi	RP-SMA Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA WLAN Whip, Tilt RP-SMA Male Connector Mount

Technical documentation and resources

No documents available
