282-698/281-434

Active

WAGO Corporation

FUSED TERMINAL BLOCK, 2 POSITIONS, 24 AWG, 10 AWG, 6 MM², CLAMP, 30 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

282-698/281-434

Active

WAGO Corporation

FUSED TERMINAL BLOCK, 2 POSITIONS, 24 AWG, 10 AWG, 6 MM², CLAMP, 30 A

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	282-698/281-434

Color	Gray
Current - IEC	30 A
Disconnect Type	Fuse
Features	LED Indicator
Material - Insulation	Polyamide (PA66), Nylon 6/6
Number of Levels	1
Number of Positions	2
Stripping Length [Max]	13 mm
Stripping Length [Min]	12 mm
Terminal - Width [y]	8 mm
Termination Style	Push In, Spring
Type	Disconnect
Voltage - IEC	400 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm˛ [Max]	6 mm˛
Wire Gauge or Range - mm˛ [Min]	0.2 mm˛

282 Series

Part	Terminal - Width [y]	Material - Insulation	Voltage - IEC	Termination Style	Disconnect Type	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Stripping Length [Min]	Stripping Length [Max]	Number of Positions	Color	For Use With/Related Products	Features	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Fuse Type [y]
WAGO Corporation 282-696	8 mm	Polyamide (PA66) Nylon 6/6	400 V	Push In Spring	Fuse	1	10 AWG	24 AWG	30 A	0.2 mm²	6 mm²	Disconnect	12 mm	13 mm	2	Gray
WAGO Corporation 282-681	8 mm	Polyamide (PA66) Nylon 6/6	800 V	Push In Spring		1	10 AWG	24 AWG	41 A	0.2 mm²	6 mm²	Feed Through	12 mm	13 mm		Gray
WAGO Corporation 282-328												End Plate					Terminal Blocks
WAGO Corporation 282-687	8 mm	Polyamide (PA66) Nylon 6/6		Push In Spring		1	10 AWG	24 AWG		0.2 mm²	6 mm²	Ground Earth	12 mm	13 mm		Green Yellow
WAGO Corporation 282-901	8 mm	Polyamide (PA66) Nylon 6/6	800 V	Push In Spring		1	10 AWG	24 AWG	41 A	0.2 mm²	6 mm²	Feed Through	12 mm	13 mm	2	Gray
WAGO Corporation 282-317												End Plate					Terminal Blocks
WAGO Corporation 282-333												End Plate					Terminal Blocks
WAGO Corporation 282-312												End Plate					Terminal Blocks
WAGO Corporation 282-698/281-434	8 mm	Polyamide (PA66) Nylon 6/6	400 V	Push In Spring	Fuse	1	10 AWG	24 AWG	30 A			Disconnect	12 mm	13 mm	2	Gray		LED Indicator	6 mm˛	0.2 mm˛
WAGO Corporation 282-128	13 mm		500 V	Screw	Fuse Screw Cap	1	10 AWG	24 AWG	10 A	0.2 mm²	6 mm²	Disconnect	12 mm	13 mm	2	Gray					0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.67
		10	$ 20.80
		25	$ 20.08
		50	$ 19.36
		100	$ 18.78
		250	$ 18.42
		500	$ 18.06
Newark	Each	1	$ 34.32
		25	$ 32.56
		100	$ 30.64
		250	$ 28.87
		500	$ 26.81

Description

General part information

282 Series

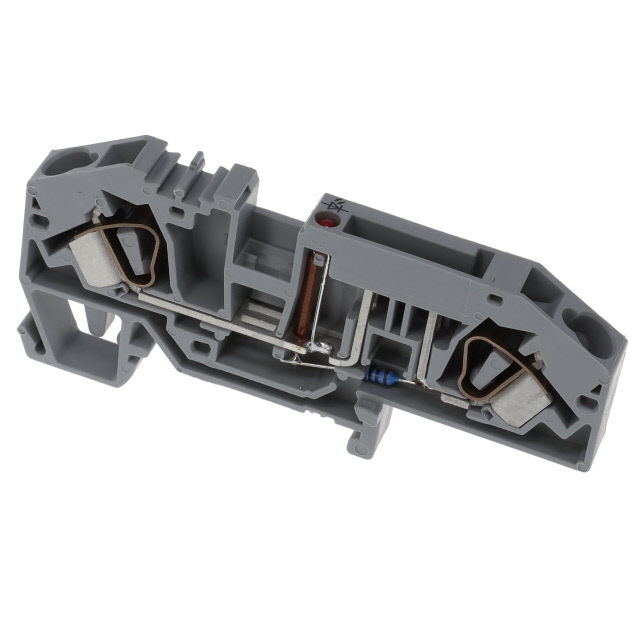

The 282-698/281-434 is a 2-position Fuse Terminal Block with mini-automotive blade-style fuses. Angled type wiring, grey color, DIN rail TS 35 mounting, clamp wire connection method and 24 to 10AWG wire size. The nominal voltage and nominal current are defined by the indicator lamp or the fuse.
